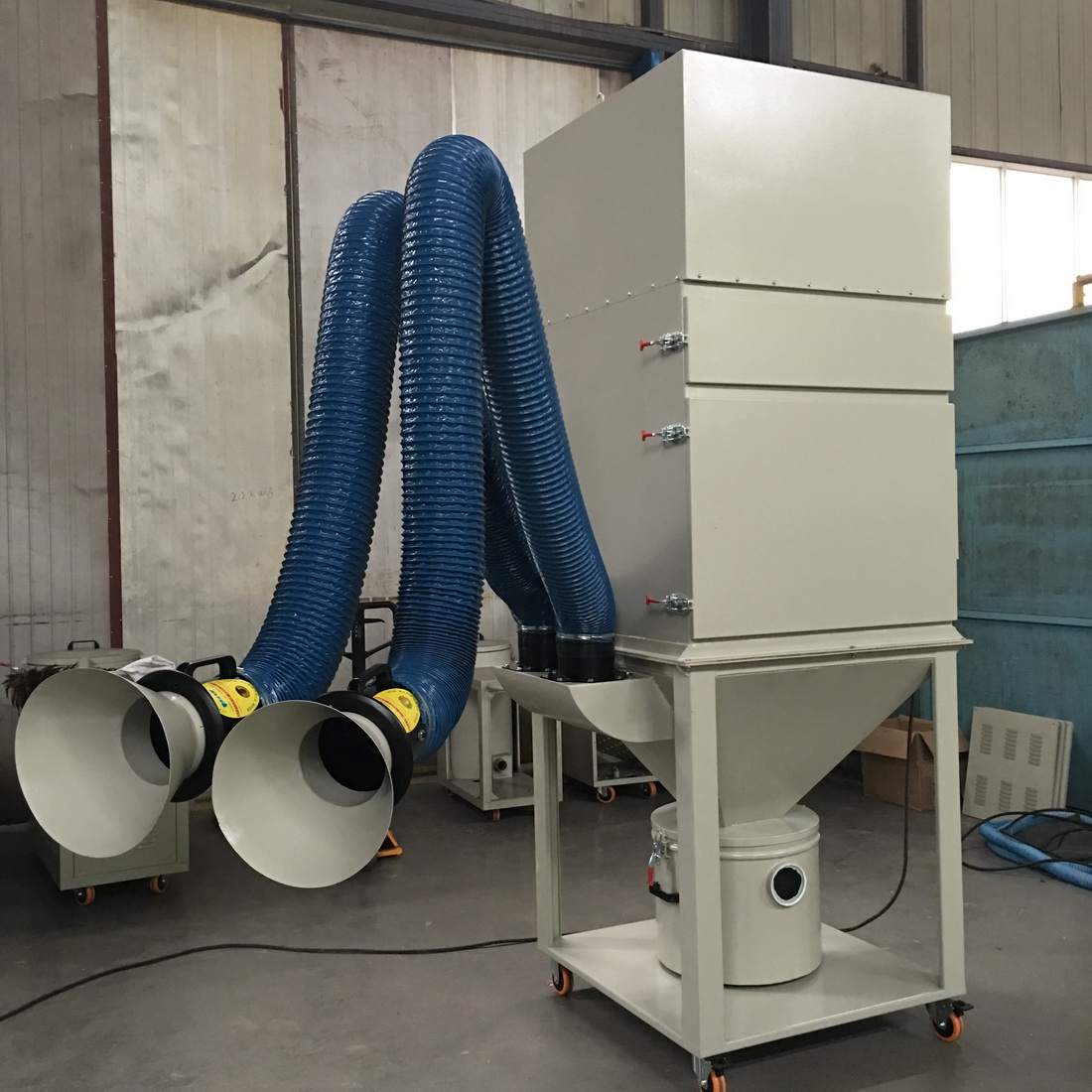

Vertical Cartridge Dust Collector

Share to:
Vertical cartridge collectors are designed for low airflow and heavy dust load applications. The filter cartridges are fastened on tube sheet by a special locking mechanism. The venturi on the top of tube sheet can improve pulse jet clean effects and reduce system pressure. The vertical mounted cartridges avoid possibility of dusts falling from upper filters to down filters, which allows for higher A/C ratio and longer filter life.
  • SFF-D1-126
  • FORST FILTER
  • 8421392990
Quantity:

Product Descriptions:

Vertical cartridge collectors are designed for low airflow and heavy dust load applications. The filter cartridges are fastened on tube sheet by a special locking mechanism. The venturi on the top of tube sheet can improve pulse jet clean effects and reduce system pressure. The vertical mounted cartridges avoid possibility of dusts falling from upper filters to down filters, which allows for higher A/C ratio and longer filter life.



Features:

(1) Suitable for most industrial process dust collections

(2) Special designed drop down inlet for heavy dust falling into hopper before reaching the filters.

(3) A variety of filter media technologies to provide filter efficiencies to 99.98%

(4) Suitable for operating at highest air-to-cloth ratio and providing longest filter life

(5) Cartridges secured and changed out from front access doors without need of tools

(6) Automatic compressed air pulse cleaning is standard

(7) Centrifugal fan is mounted on top of dust collector to save floor space

(8) Timer board or pulse on demand controls available to activate pulse valves

(9) Strongest housing construction for durable working life.



Typical Application:

Metal working, laser cutting, plasma cutting fumes, grinding, sand blast, welding fumes, graphite, pharmaceutical, chemical



Specifications:

Model

Cartridges

Filter   Area 1

Filter   Area 2

Filter   Area 3

Filter   Area 4

D2-4

4

84 m2

112 m2

37.6 m2

52 m2

D2-8

8

168 m2

224 m2

75.2 m2

104 m2

D2-12

12

252 m2

336 m2

112.8 m2

156 m2

D2-16

16

336 m2

448 m2

150.4 m2

208 m2

D2-20

20

420 m2

560 m2

188 m2

260 m2

D3-6

6

126 m2

168 m2

56.4 m2

78 m2

D3-12

12

252 m2

336 m2

112.8 m2

156 m2

D3-18

18

378 m2

504 m2

169.2 m2

234 m2

D3-24

24

504 m2

672 m2

225.6 m2

312 m2

D3-30

30

630 m2

840 m2

282 m2

390 m2
