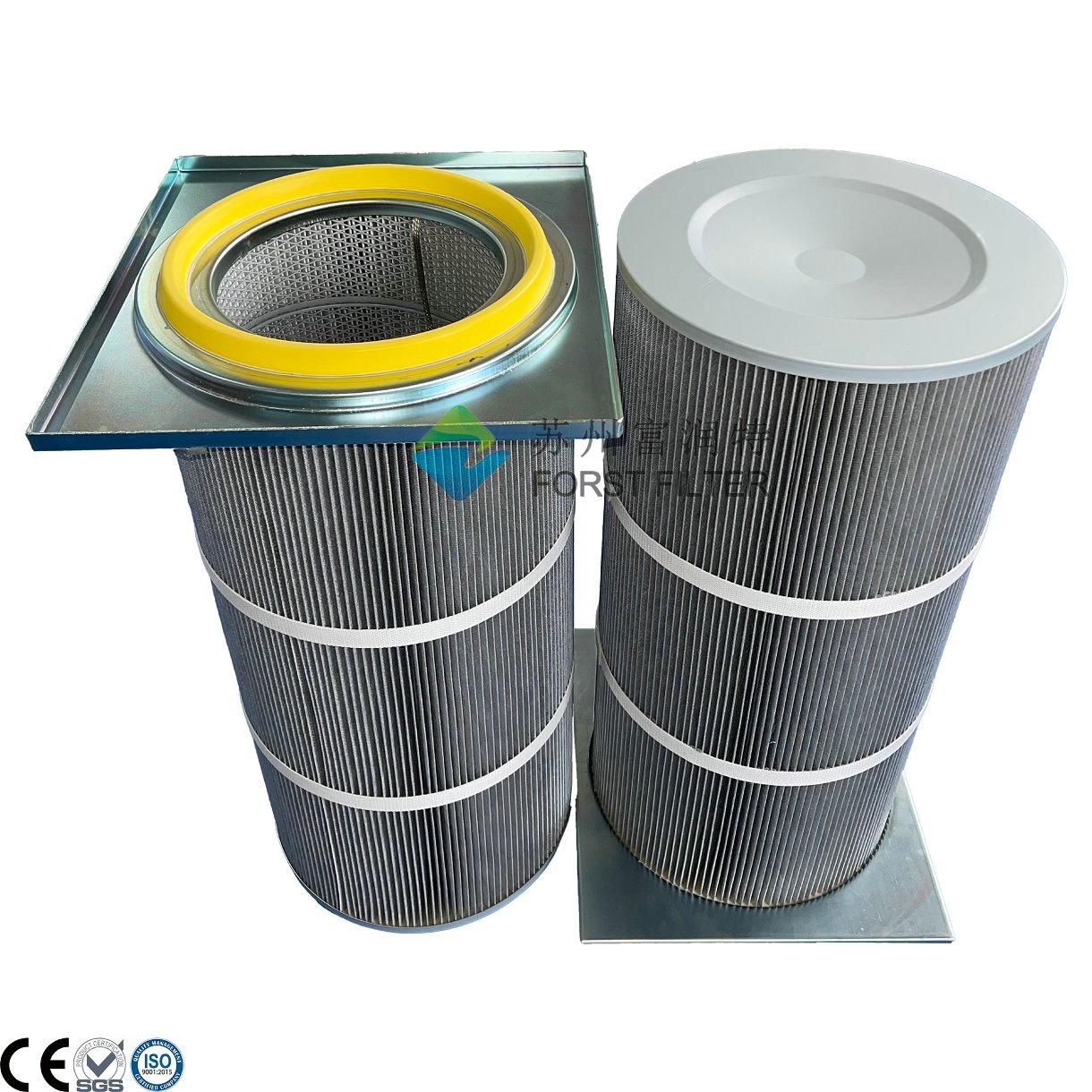

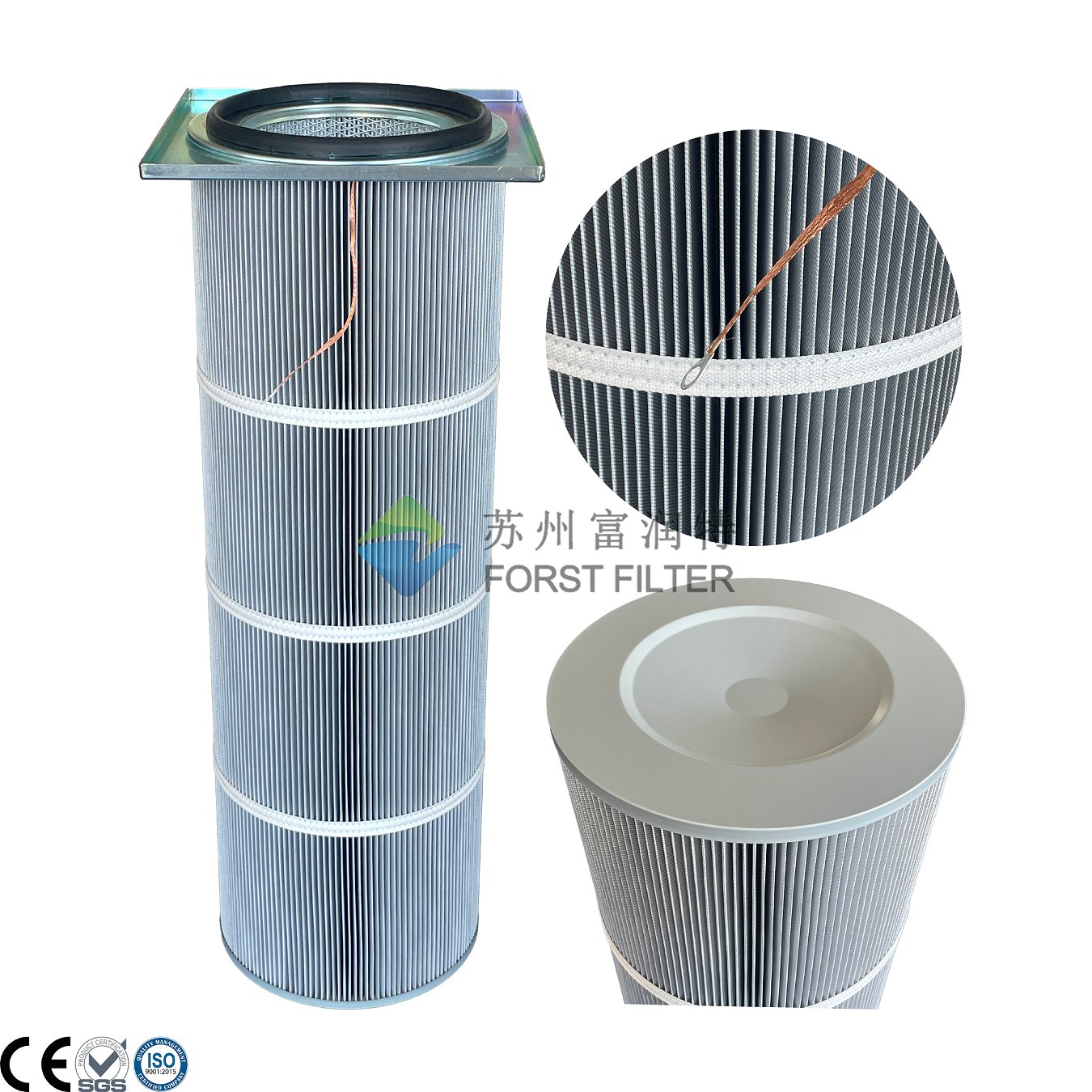

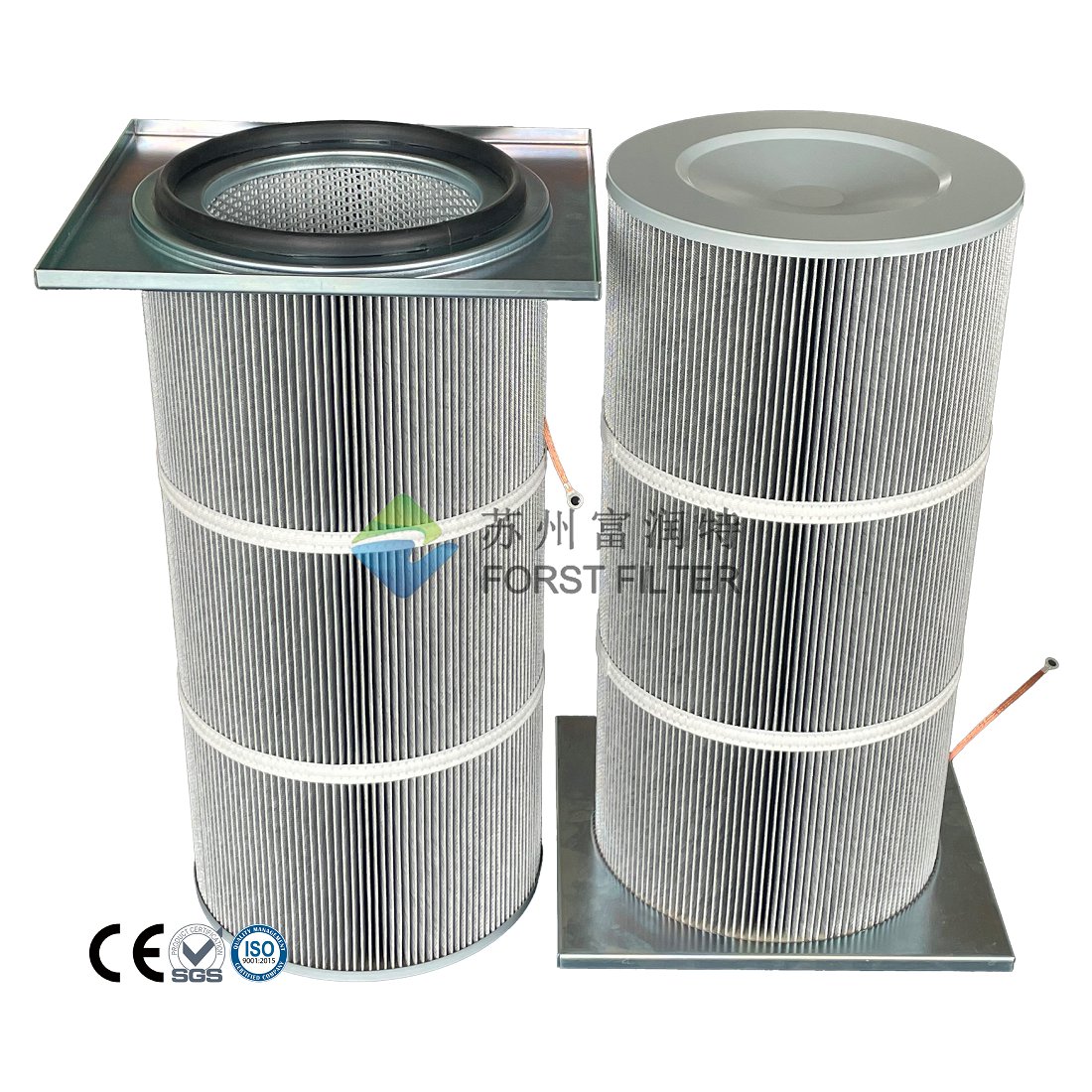

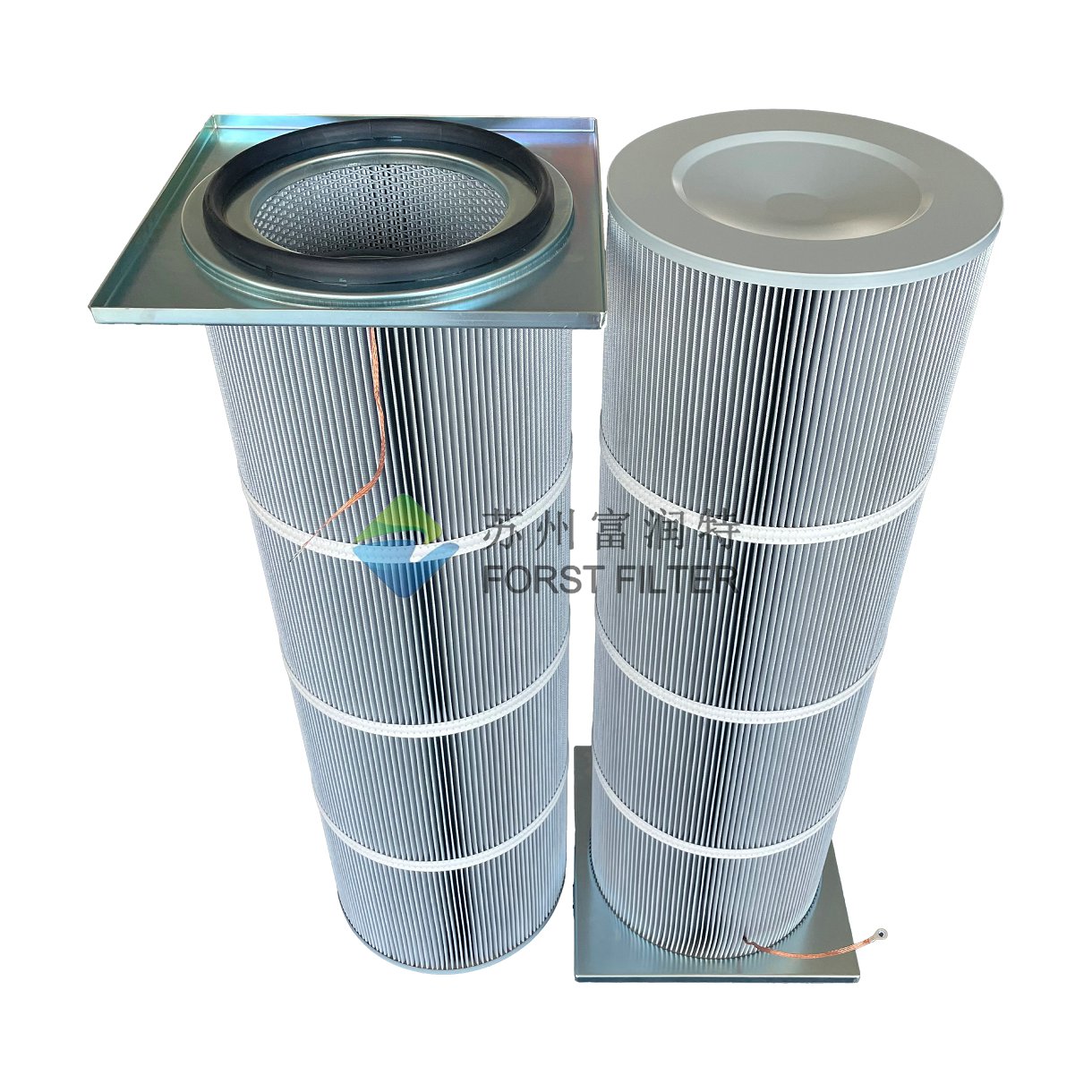

Square Cap Clamp Dust Collector Filter Cartridge
High-Efficiency Polyester | Quick Installation | Forst
Product Overview
The Square Cap Clamp Dust Collector Filter Cartridge is engineered with high-strength polyester filter media and a corrosion-resistant square clamp design. Built for industrial dust collection systems, it delivers stable filtration performance, quick installation, and low maintenance — ideal for demanding work environments.
Key Features
Features
High-density polyester filter media

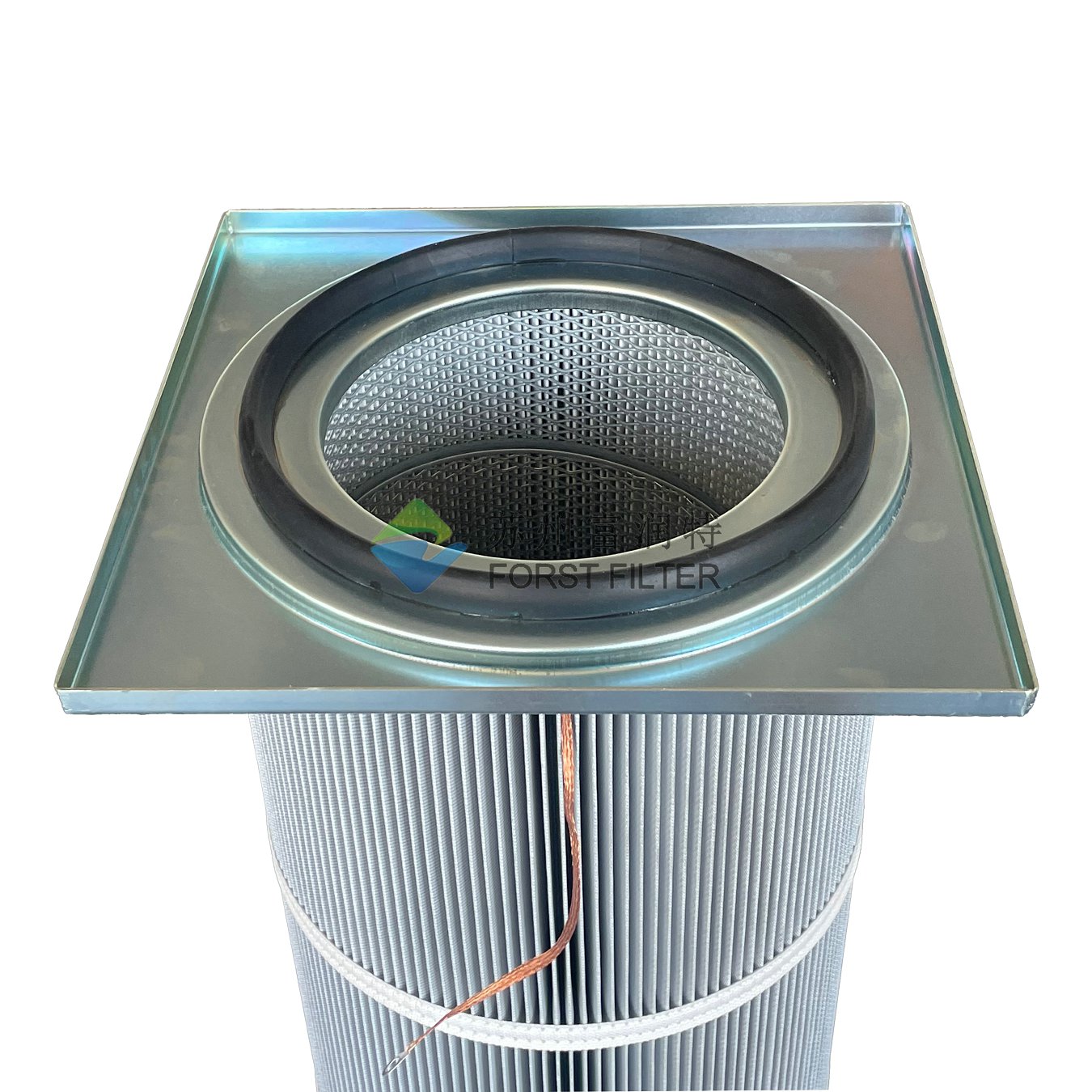

Square cap clamp for quick-fit installation

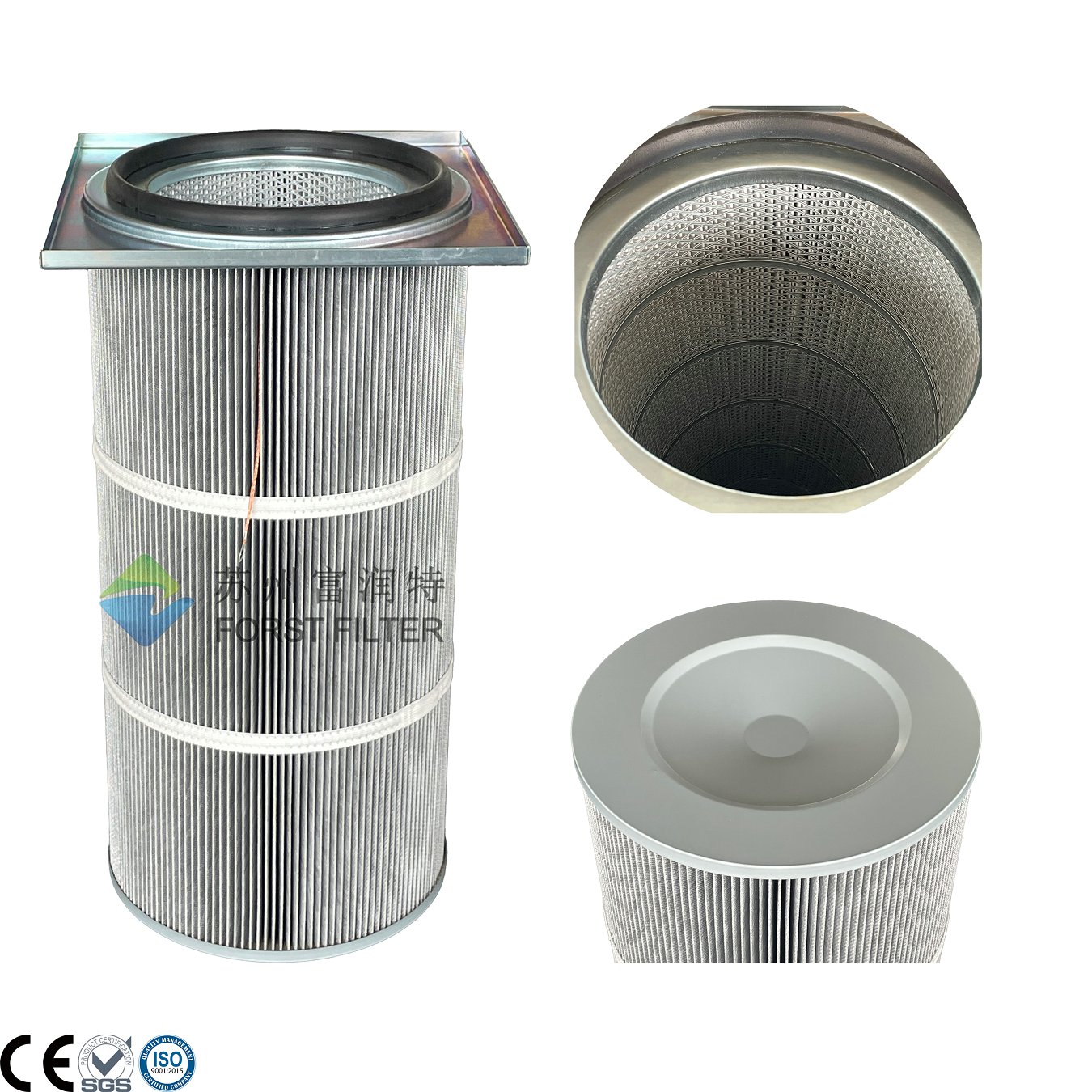

Reinforced inner & outer support cage for stability
Advantages
Easy to install and remove without special tools
Low maintenance cost and long service life
Rugged design for heavy-duty industrial applications
Benefits
Improves filtration efficiency and equipment lifespan
Enhances workplace air quality
Reduces machine downtime and maintenance interruptions
Applications
Perfect for metalworking, woodworking, painting, pharmaceutical, and food processing dust collectors.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | FS-SQ-001 / FS-SQ-002 / FS-SQ-CUSTOM |
| Filter Media | Polyester |
| Filtration Efficiency | ≥99.0% @ 1μm (varies by model) |
| Outer Diameter | 76mm / 100mm / Customizable |
| Length | 150mm – 1200mm optional |
| End Cap Type | Square cap clamp |
| Support Cage | Galvanized steel or stainless steel |
| Seal Material | Silicone / Viton optional |
| Max Operating Temperature | ≤120°C (depends on media) |
| Operating Pressure | ~ -10kPa to +30kPa (reference) |
| Service Life | Typically 6–18 months (depends on conditions) |
| Weight | Varies by size |
| Certifications | ISO9001, material reports, and third-party test reports |
We provide custom-made filter cartridges to fit your specific dust collection system.
You can choose:
Size and length
Filter media type
End cap design
Seal material
For optimal performance, share your operating conditions such as temperature, dust type, and concentration with our engineering team.
