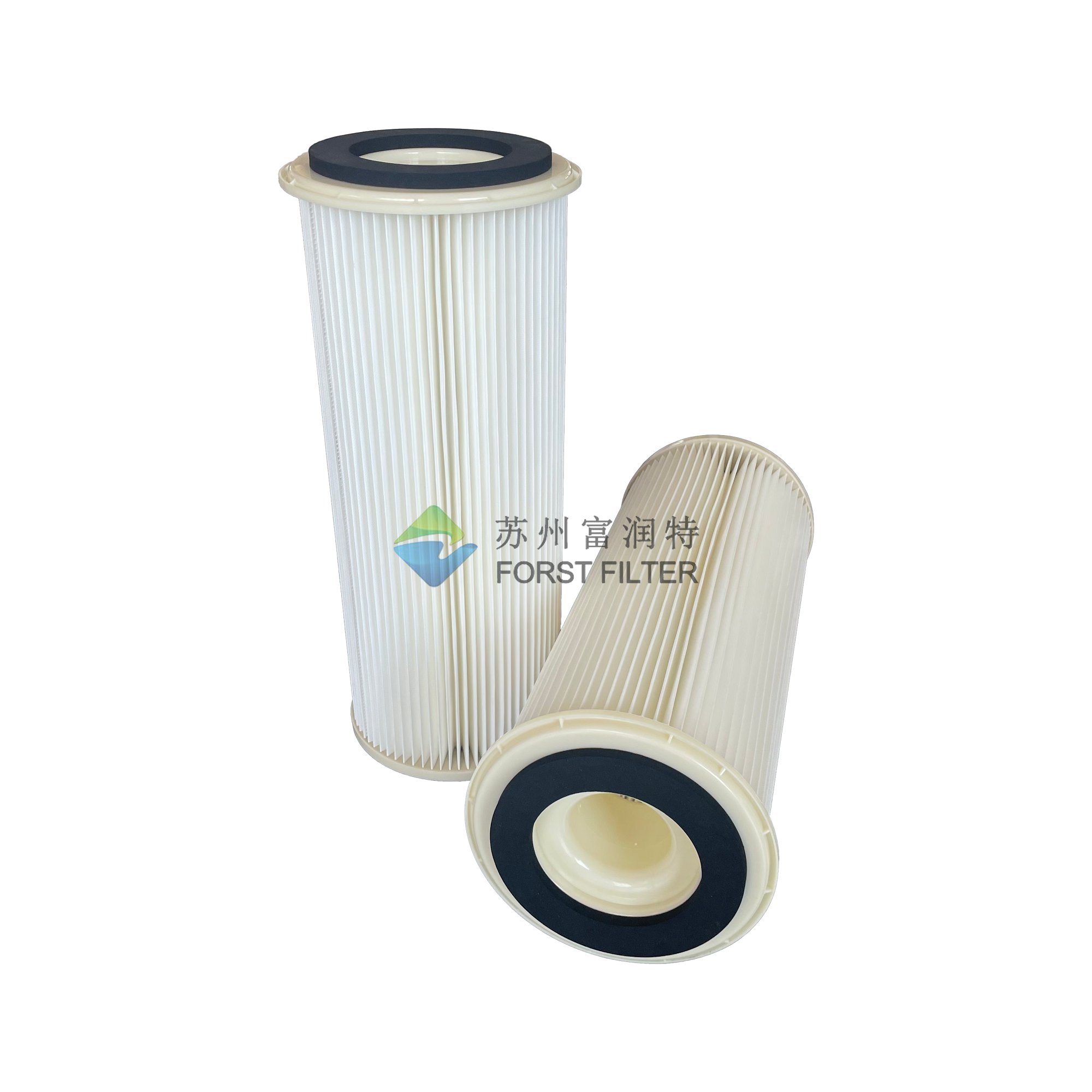

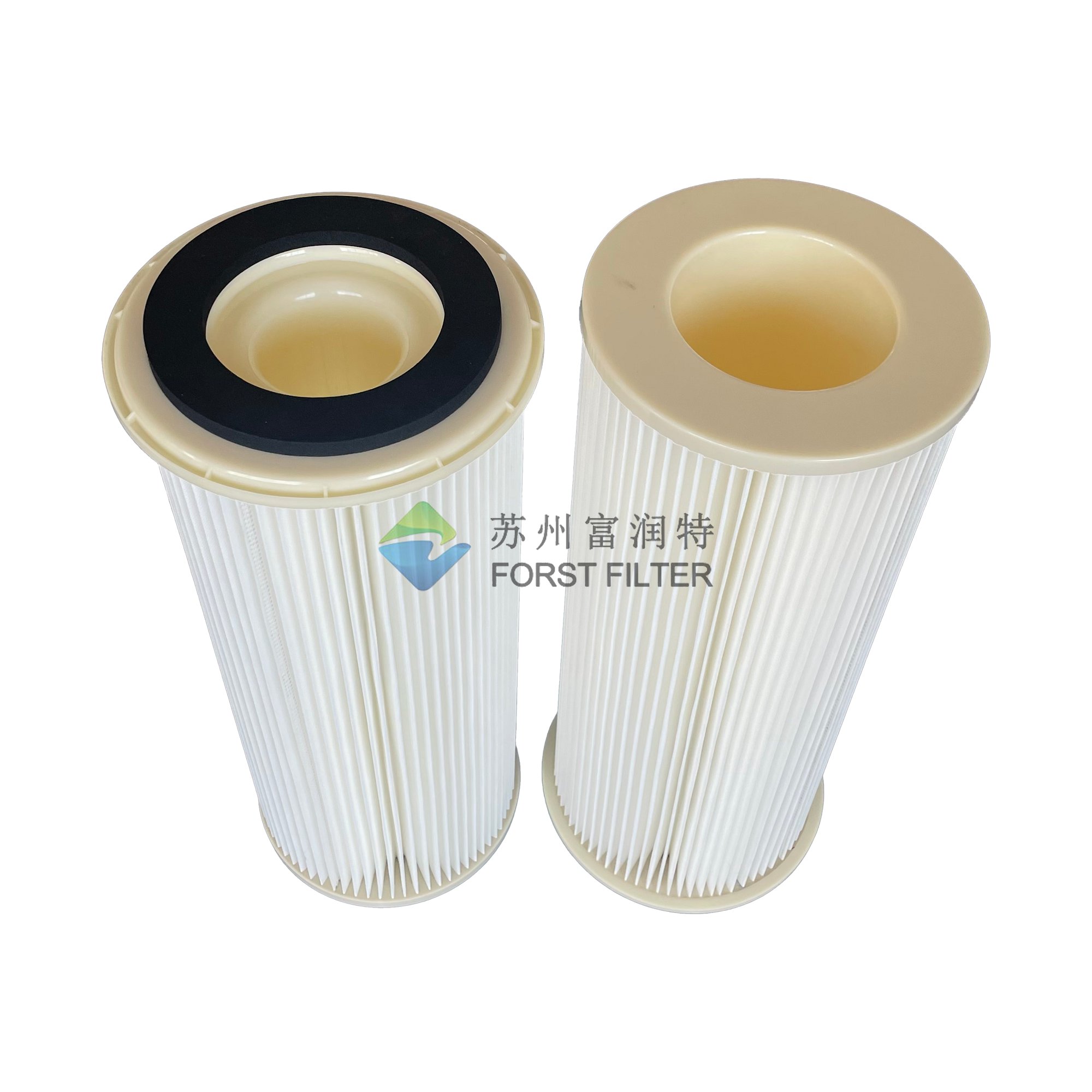

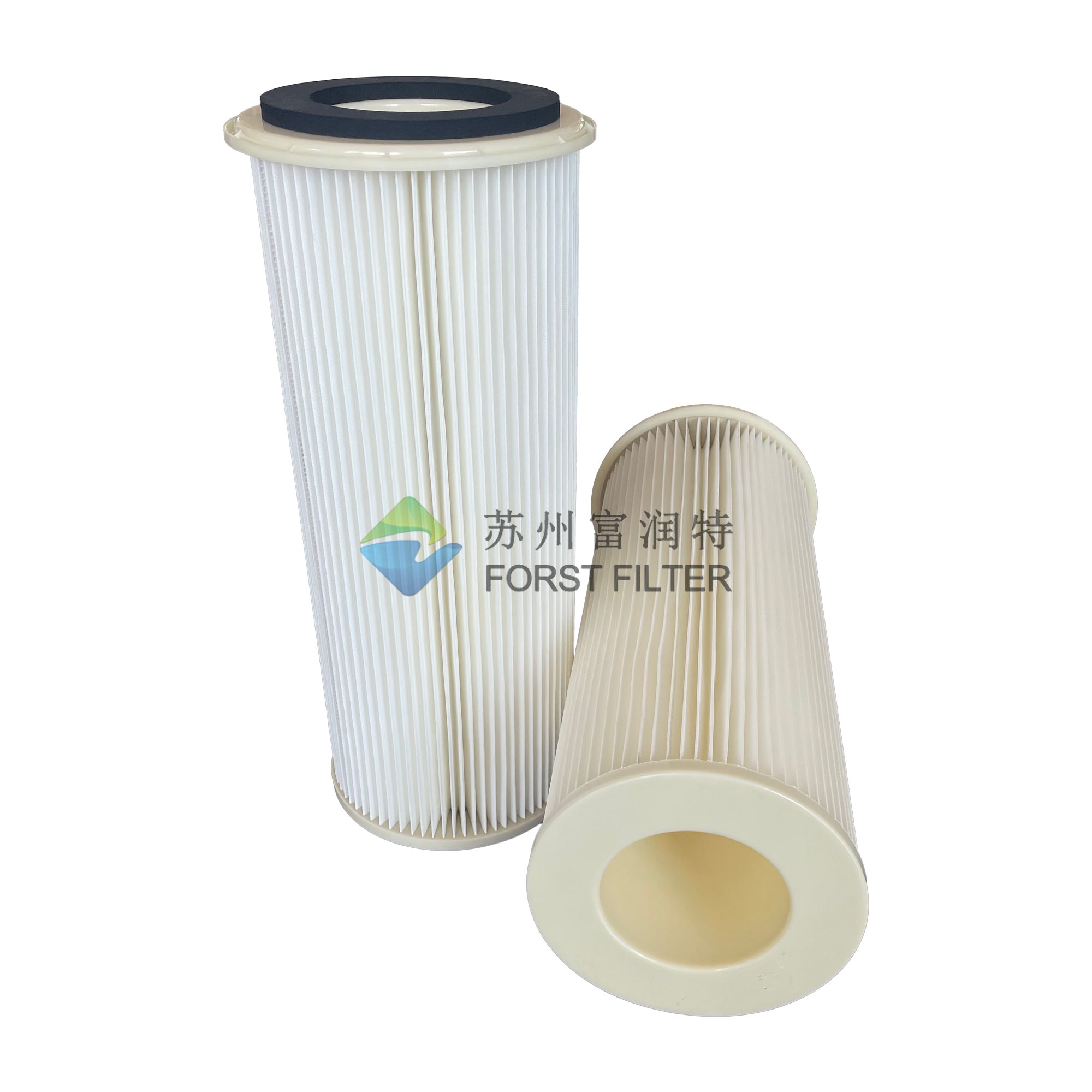

This Air Filter Cartridge is engineered to deliver high-efficiency filtration for industrial dust collection systems, specifically compatible with Amanon-style dust collectors. Constructed with premium filter media and durable end caps, it ensures effective removal of fine airborne particles while maintaining optimal airflow and low pressure drop. Ideal for industries such as metalworking, powder coating, woodworking, and manufacturing.
High Filtration Efficiency: Captures ≥99.9% of fine dust including welding smoke and powder residues.
Quality Filter Media Options: Polyester, cellulose, nano fiber, flame retardant, and anti-static available.
Strong & Sealed Construction: Galvanized/stainless steel end caps and durable internal mesh core.
Pulse Jet Cleaning Compatible: Optimized for reverse pulse cleaning with extended service life.
Direct Replacement Design: Easy installation into Amanon-style dust collectors with no modification.
Custom Sizes Available: Tailored OD, ID, length, and gasket types upon request.
Parameter | Specification |
Filter Media | Polyester / Nano / Flame Retardant / Cellulose |
Filtration Efficiency | ≥99.9% @ 1.0μm |
Outer Diameter | 325 mm / 350 mm (customizable) |
Inner Diameter | 213 mm / 145 mm (depending on model) |
Length | 660 mm / 700 mm / Custom |
End Cap Material | Galvanized Steel / Stainless Steel |
Gasket Type | Urethane / Rubber / Silicone |
Core | Expanded Metal Mesh |
Operating Temperature | Up to 120°C (standard) |
Cleaning Method | Pulse Jet / Reverse Pulse Compatible |
Welding & Fabrication Workshops
Powder Coating & Painting Systems
Woodworking Dust Control
Cement, Mining & Mineral Processing
Pharmaceutical & Food Processing
General Industrial Air Filtration
Individually wrapped with plastic film
Reinforced cartons or pallet packaging for export
OEM labeling and barcode customization supported
Global delivery by sea, air, or express
Compatible with Amanon-style dust collectors
High-performance filtration and airflow optimization
Industrial-grade durability and heat resistance
Factory-direct pricing and reliable global delivery
Custom options for media, sizes, and gaskets
