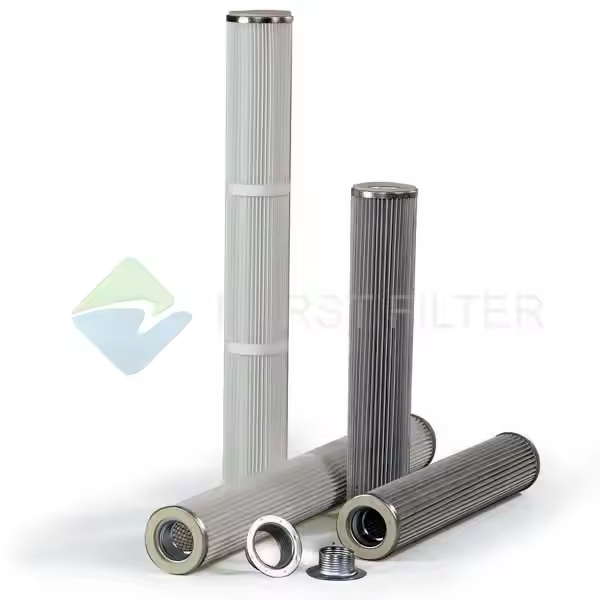

Metal Top/Bottom Pleated Bag Filters

Video description:

Product Descriptions:

Developed to replace traditional filter bags and cages, each pleated bag filter has a one-piece construction design which allows it to be used in new systems or as a simple retrofit in existing bag house equipment for improved system performance.



Pleated bag filters offer more filtration media than traditional felt bags increasing the filtration surface area and thus the filtration capacity. With up to 2-3 times the filter life over traditional 16 oz. polyester felt bags, pleated bag filters provide almost twice as much filtration area in existing equipment due to increased media in the pleat pack design.



This increased filter area causes the air-to-media ratio to decrease when the airflow stays the same, dramatically increasing filtration efficiency while operating at significantly lower differential pressures. Pleated bag filters are shorter than standard fabric bags which allows for larger drop out area and less opportunity for bag abrasion.



Many installation methods to meet all the working conditions, Available in a variety of configurations for top-load, bottom-load and oval styles with multiple filter media options including ePTFE (expanded polytetrafluoruethylene) and spunbond polyester.High temperature media and configurations also available.



Features:

(1) World famous brand filter media: 100% spun bond polyester Smooth surface of filters.

(2) Highest filter efficiency more than 99.99% Proper number of pleats, wide and rigid pleats Large Length-to-OD ratio.

(3) Offers excellent dust release Incorporate design according to requirements Various installation options available, easy to install and save time.

(4) Airtight gasket accessories available Applications in many temperatures conditions.

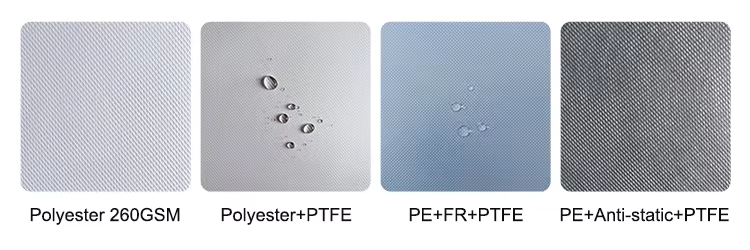

Filter media options: Water and oil repellent treatment.

    Antistatic treatment.

    PTFE membrane treatment.

Customized service:

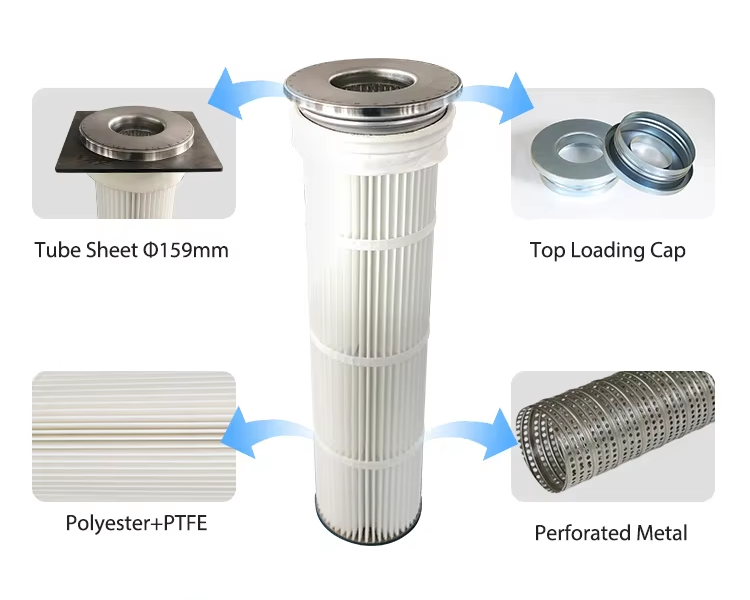

Standard top load and bottom load are available.The caps has variousconstructions such as:3 lugs/holes aluminum, roll fange steel and 3 holespoly-amide.Custom construction designs are available. All confgurationsare changeable to meet the optimum performance.

Specification:

Model	Filter area	Length	Cartridge (2mLength)	Media Weight	Air permeability	Media type
SFF-P1	2.3m2	1m	135℃	270g/m2	7m3/m2/min @12mm WC	Spun bond   polyester
SFF-P2	4.6m2	2m	135℃	270g/m2	7m3/m2/min @12mm WC	Spun bond   polyester
SFF-D1	2.3m2	1m	135℃	270g/m2	7m3/m2/min @12mm WC	Antistatic Spun   bond polyester
SFF-D2	4.6m2	2m	135℃	270g/m2	7m3/m2/min @12mm WC	Antistatic Spun   bond polyester
SFF-F1	2.3m2	1m	135℃	270g/m2	7m3/m2/min @12mm WC	Spun bond   polyester + PTFE
SFF-F2	4.6m2	2m	135℃	270g/m2	7m3/m2/min @12mm WC	Spun bond   polyester + PTFE
SFF-N1	2.3m2	1m	190℃	500g/m2	7m3/m2/min @12mm WC	Nomex
SFF-N2	4.6m2	2m	190℃	500g/m2	12m3/m2/min@12.7mm WC	Nomex
SFF-B1	2.3m2	1m	190℃			Filber Glass
SFF-B2	4.6m2	2m	260℃			Filber Glass
SFF-J1	2.3m2	1m	260℃			PPS
SFF-J2	4.6m2	2m	190℃			PPS

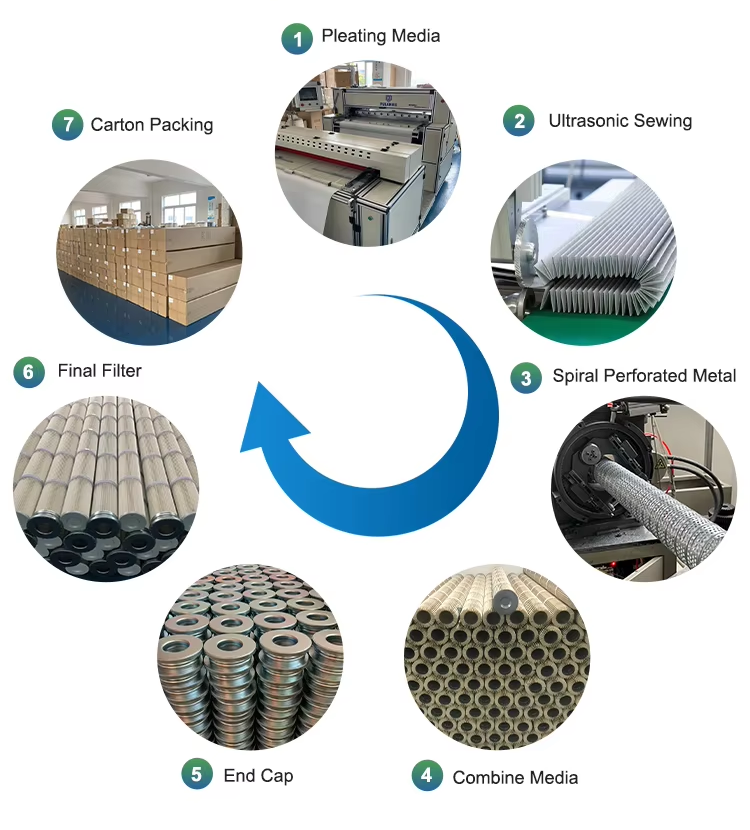

Production Process:

Pleating Media----Ultrasonic Melting----Spiral Perforated Metal----Combine Media----Glue Cap and Combined Media----Testing----Packing

Application Scenarios:

Air Filter Cartridge be used for food flour, laser cutting, powder coating, power plant, chemical plant, steel casting, wood working, polishing, milk powder, shot blasting work shop, sinter distributing, carbon powder mixing, steering wheel plant mixing, graphite power industrial factory.

Our Advantage

Forst Filter Company can except supply high quality filter, with short production period, good after-sales service, also can supply custom design, technical training, and remote instruction.

Company Profile

As a gold supplier, Forst Filter Co.,LTD has more than 10 years professional experience.

We have competitive price, big sales team, short delivery time, and good after-sales service.

We can provice free sample and accept trial orders.

Packaging&Shipping

FAQ

Q1: How can I get the quotation of filter cartridges?

A: Please let us know :
1) OD x ID x Height;
2) Filter media;
3) Apply in which industry etc.

Q2: How can I get the quotation for dust collector?
A: Please provide us your
1) dust type;
2) dust size;
3) Filter efficiency;
4) Temperature of dust;
5) Suggest Wind volume (m3/h)

Q3: Sample time & Production time?
A: Sample:1-2 days, shipping time:5 to 7 days by Express, such as DHL ,FEDEX,UPS.
A: Quantity 100pcs~500pcs, 7~10days,;1000pcs ~5000pcs:15days.

Q4. Would it be possible for us to visit your factory?
A:Sure, we welcome you at any time! Seeing is believing.

Q5. Are you manufacturer or Trade company?
A:We are professional manufacturer in China, and have in this line for almost 9 years.

Q6.How to solve the quality problems?
A:If the products are not conform to customer sample or have quality problems, our company will be responsible to make compensation for it.

Q7.Can I get your products with our logo and design?
A:Yes, you can. Most of our products can be customized according to your requirements.

Q8.Which payment terms are you accept?
A:T/T, LC, Western Union, Money Gram are available for us.We accept 30% T/T in advance, the balance should be paid before shipping.
