• Imported spun bonded polyester with PTFE membrane, microporou Offers 99.99+% filter efficiency.
• Wide pleat spacing and smooth, hydrophobic PTFE provides excellent particle release
• Excellent resistance to chemical erosion.
• Applicable temperature: 93-135°C.
| Availability: | |
|---|---|
| Quantity: | |

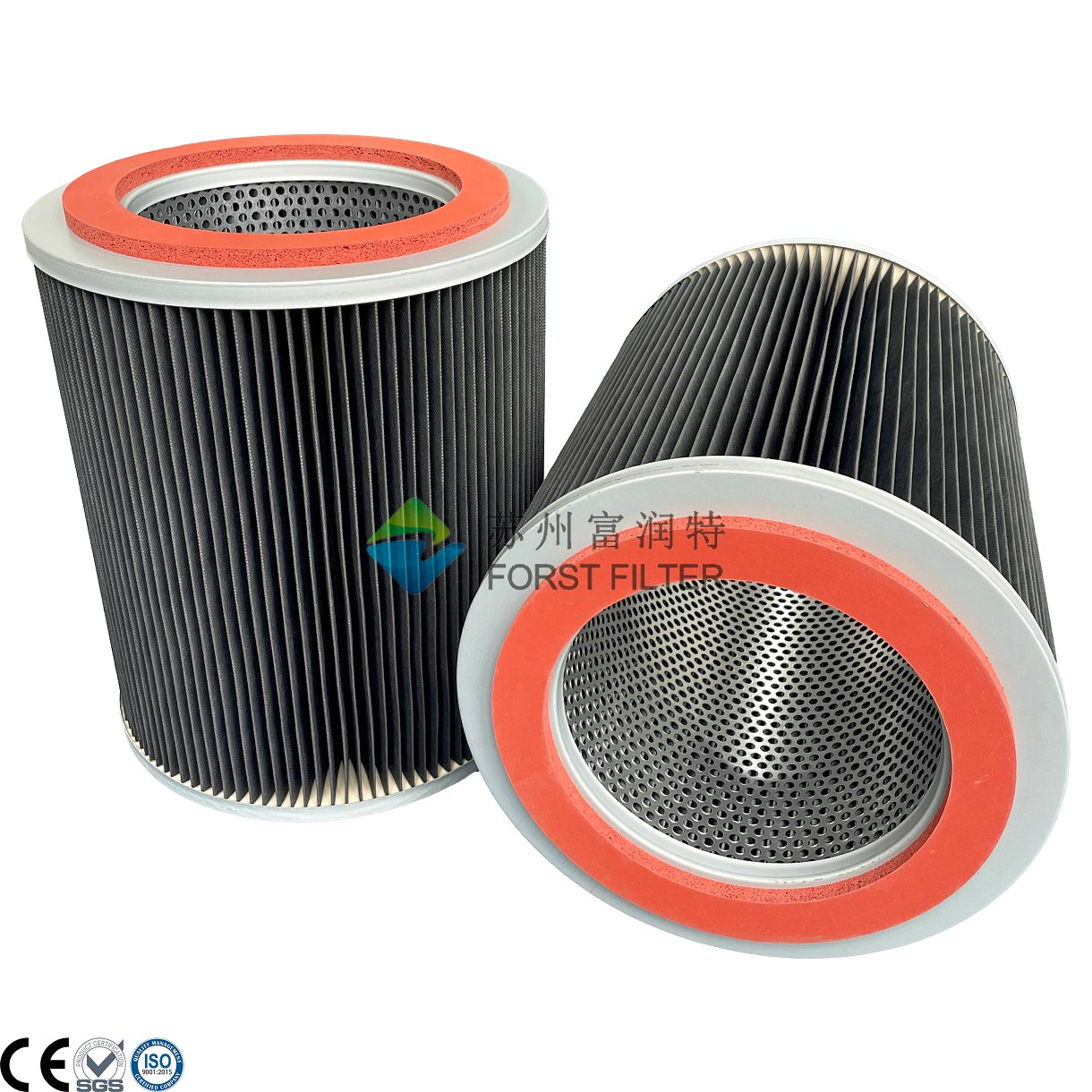

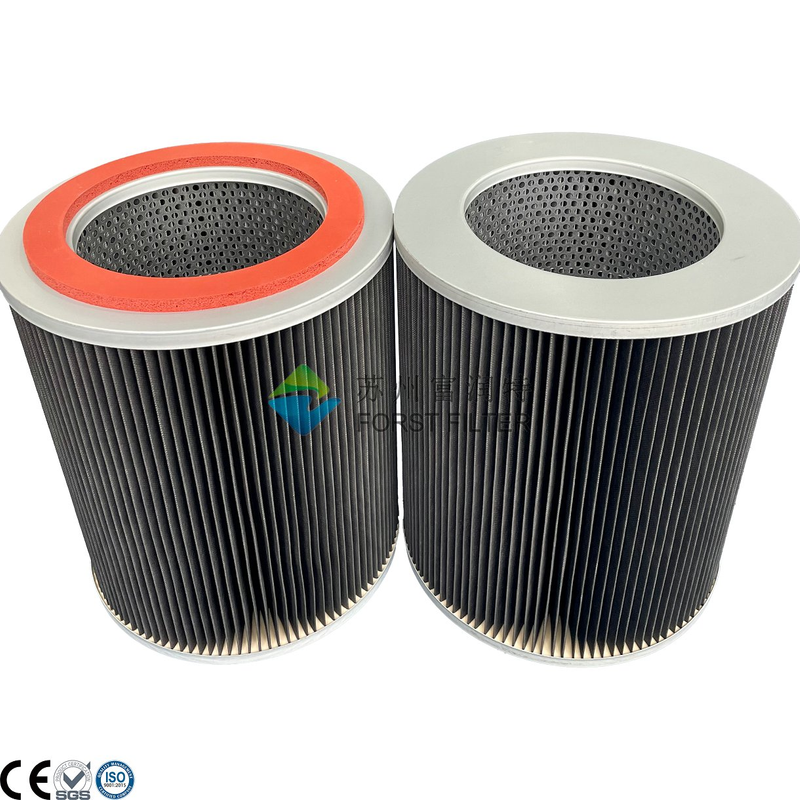

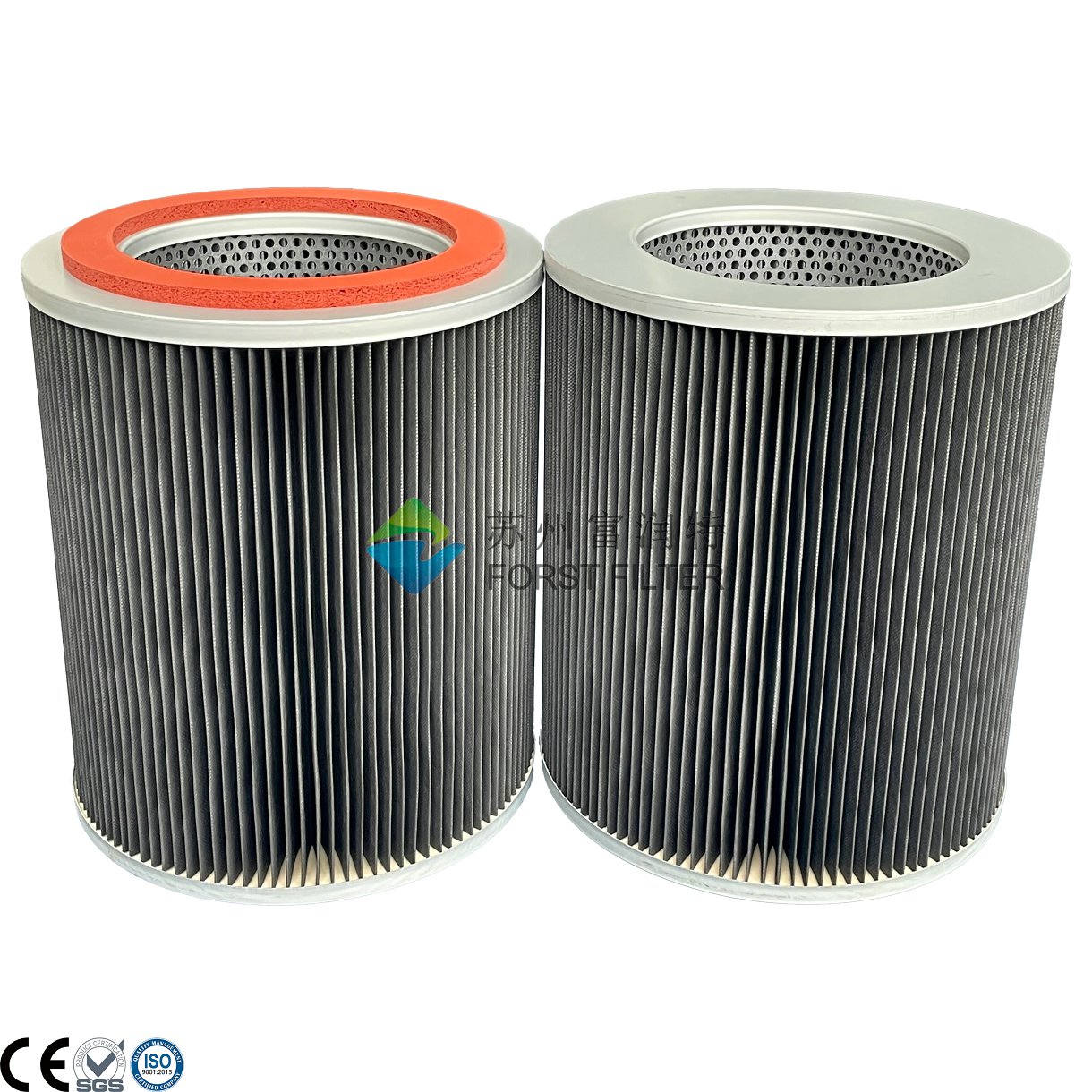

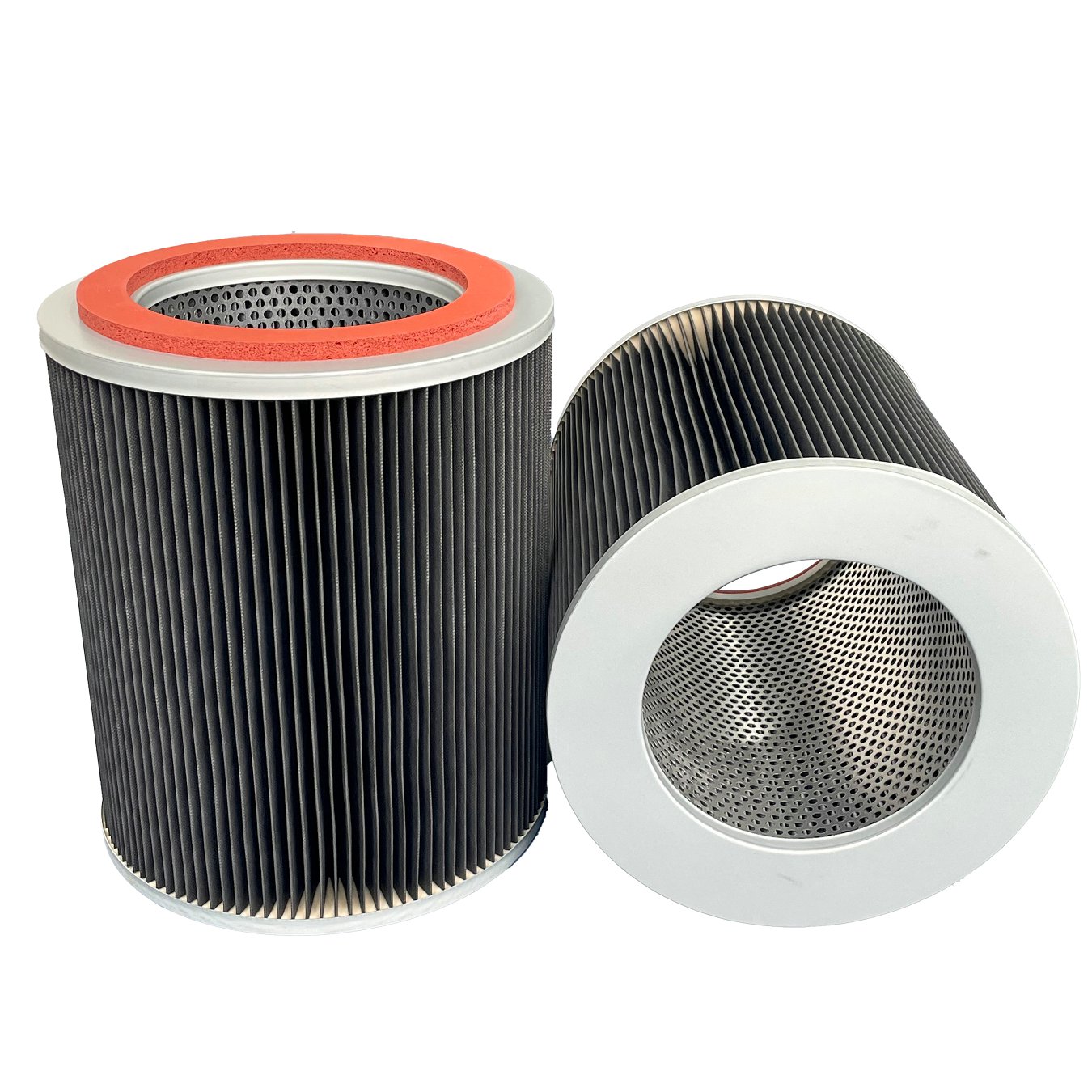

Our Carbon Fiber Dust Filter Cartridge is engineered to deliver high-efficiency filtration in environments that demand anti-static, high-temperature, and fine particulate control. With conductive carbon fiber media and durable construction, it is ideal for use in explosive dust, flammable gas, and electronic manufacturing areas.
Conductive Carbon Fiber Media: Prevents electrostatic discharge, ensuring safety in explosive environments.
High-Temperature Resistance: Operates reliably in temperatures up to 150°C.
Pleated Cylindrical Design: Increases surface area and enhances airflow.
Durable End Caps & Core: Stainless steel or galvanized steel options for strength and corrosion resistance.
Pulse Jet Cleaning Compatible: Supports automatic cleaning systems for reduced maintenance.
Custom Fit Options: Tailored sizes and gasket types for your equipment model.
Parameter | Specification |
Filter Media | Carbon Fiber / Conductive Polyester Blend |
Filtration Efficiency | ≥99.9% @ 1.0μm |
Outer Diameter | 325 mm (customizable) |
Length | 660 mm / 700 mm / Custom |
End Caps | Galvanized Steel / Stainless Steel |
Core Support | Expanded Metal Mesh (Anti-corrosive) |
Gasket Type | PU / EPDM / Conductive Rubber |
Temperature Resistance | Up to 150°C |
Electrostatic Resistance | <10⁶ Ω |
Cleaning Method | Pulse Jet / Manual |
Electronics and Semiconductor Dust Control
Powder Coating with Flammable Powders
Metalworking and CNC Machining
Pharmaceuticals with Static-Sensitive Materials
Explosive Dust Extraction (ATEX Zones)
Each filter packed in protective film and carton
OEM logo and label available
Global shipping support: air, sea, express
Bulk pallet packaging for large orders
Direct Manufacturer with ISO-certified production
Specialized in anti-static and high-performance filters
OEM & ODM support available
Fast production and global delivery
Exported to EU, US, Southeast Asia
