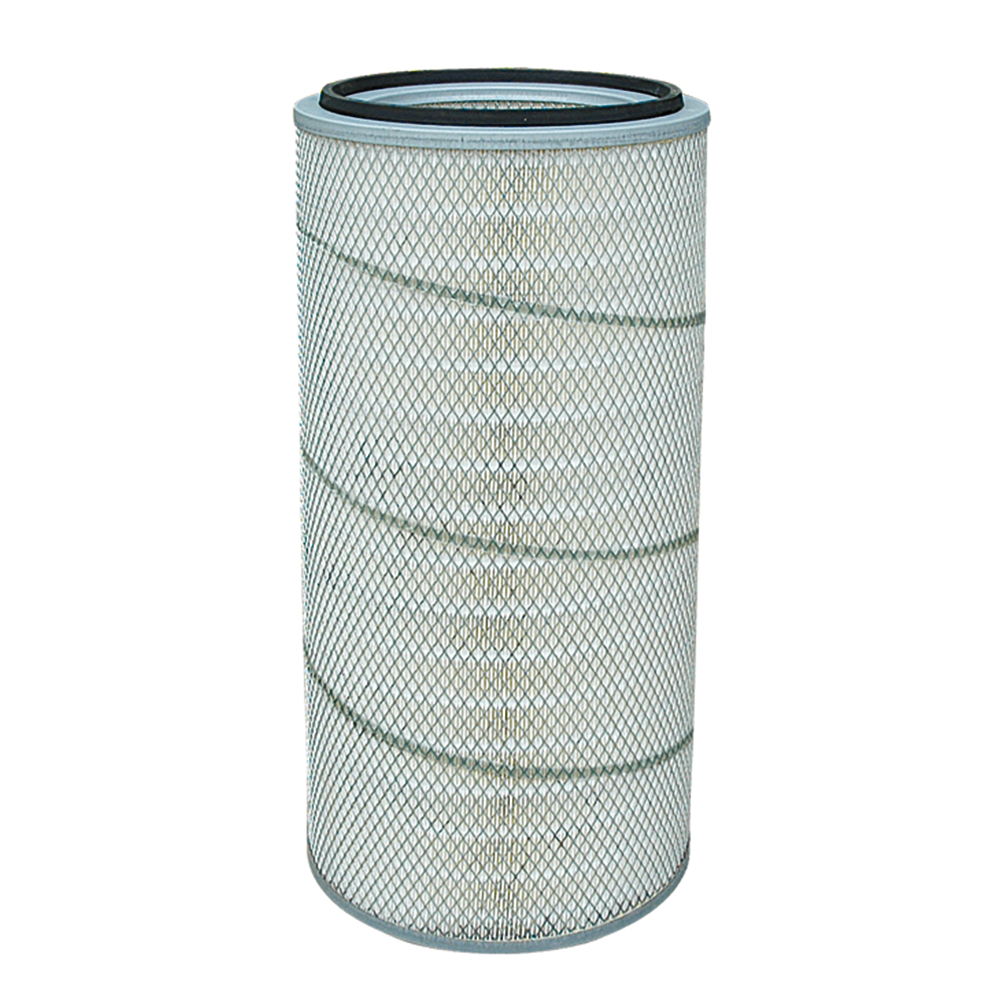

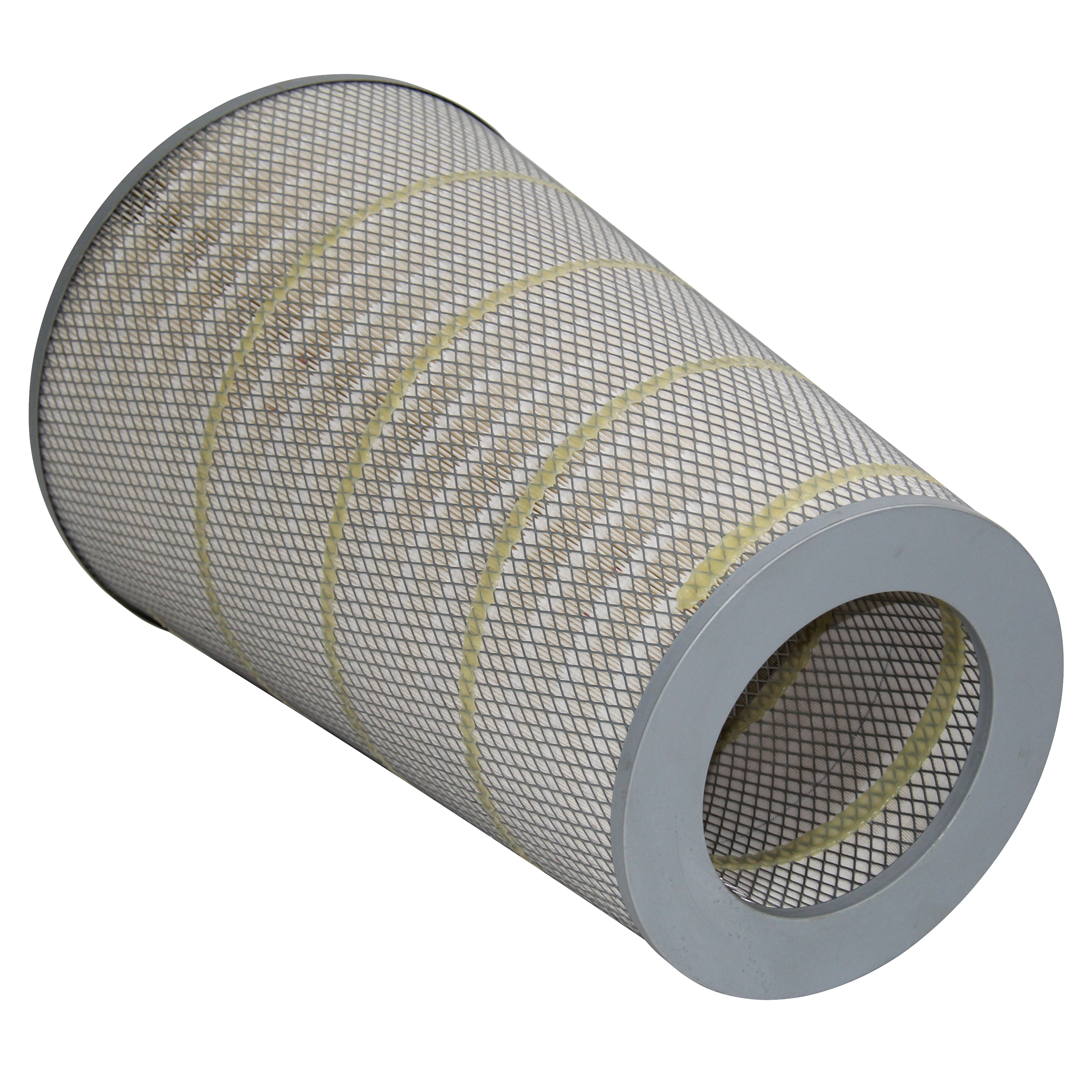

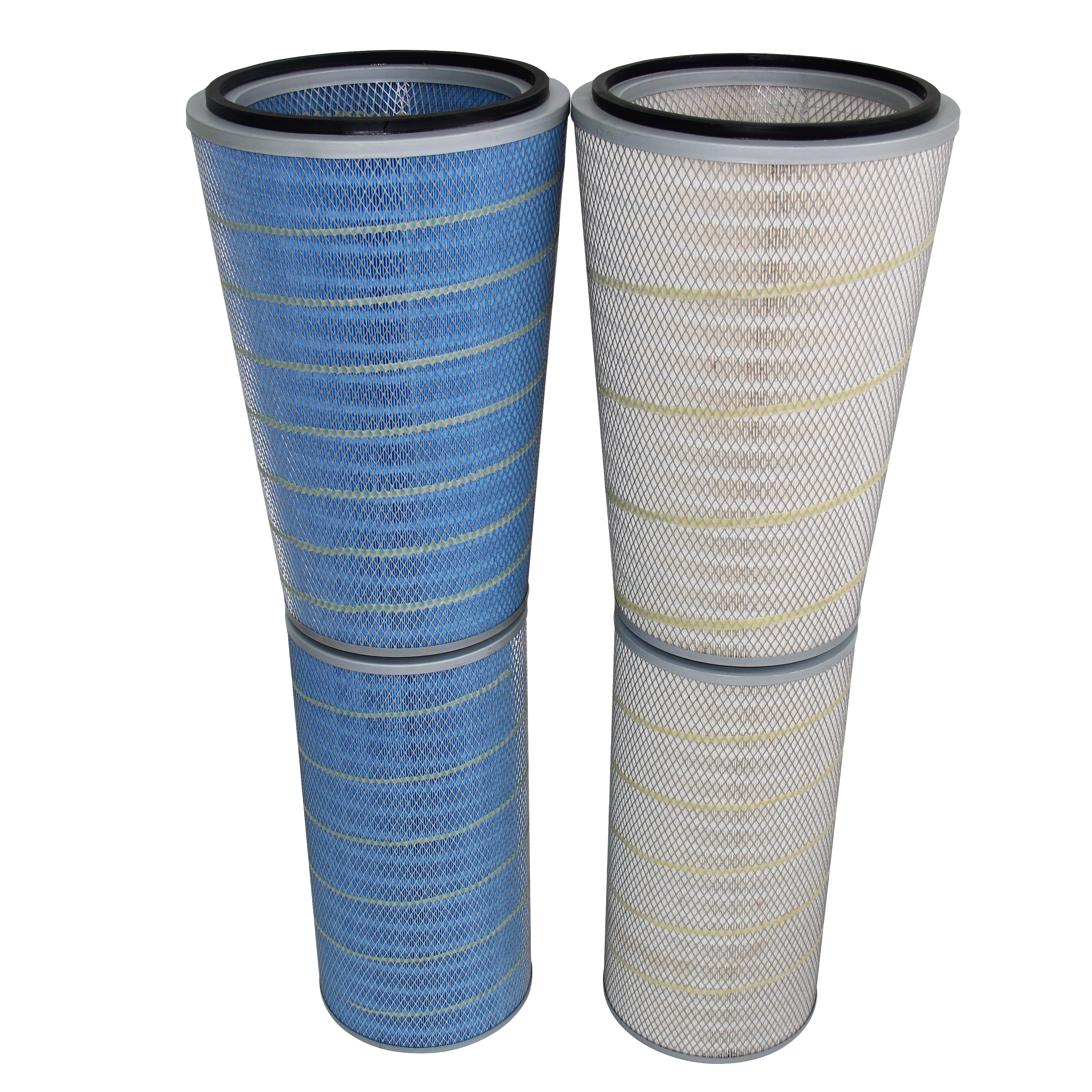

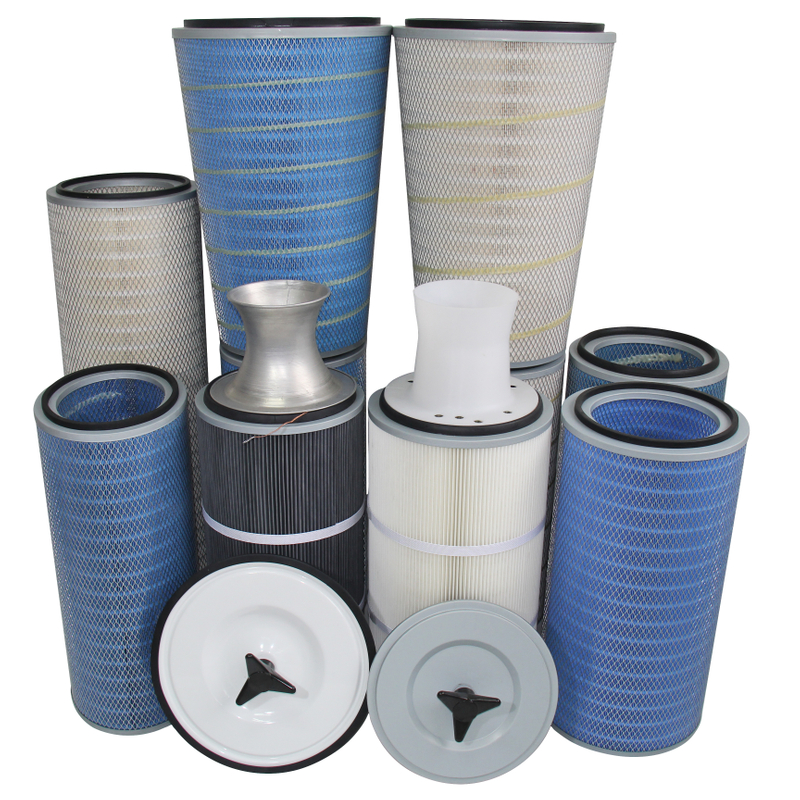

• Made from high-quality wood pulp fiber, ensuring efficient filtration and stable performance in dry dust collection environments.
• Filters out up to 99.9% of fine dust particles (≥1μm), ideal for industrial air purification systems.
• Available with galvanized or aluminum end caps, reinforced inner core, and support for size customization.
• Renewable material, biodegradable, with long service life and low replacement cost.
SFF/Z3266
FORST FILTER
8421999090
| Availability: | |
|---|---|
| Quantity: | |
Product Descriptions:
Suitable for the filtration of fine dust type in gas turbines, compressors, shot blast, tobacco, pulverized coal ash
and floating dust collection.
Widest applications, dry and granular shaped particulate Metal working Shot Blasting Mining industry Chemical Gas turbine
Features:
(1) Imported cellulose fiber or synthetic fiber for base media (80%cellulose and 20%polyester) .
(2) Excellent filter efficiency.
(3) Wide pleat spacing, great filter surface.
(4) Electrochemical plate top and bottom, no rust.
(5) Perforated zinc galvanized metal inner core, allows good airflow.
(6) Specialty chlorine rubber gasket to ensure airtight sealing.
(7) Applicable temperature: 65°C.
Specification:
Model | O.D | I.D | Length | Filtration surface(m2) |
SFF/Z3266 | Φ324mm | Φ213mm | 660mm | 21m2 |
SFF/Z3566 | Φ352mm | Φ241mm | 660mm | 23m2 |
SFF/Z3275 | Φ324mm | Φ213mm | 750mm | 26m2 |
SFF/Z3288 | Φ324mm | Φ213mm | 880mm | 27m2 |
SFF/Z3290 | Φ324mm | Φ213mm | 915mm | 28m2 |
