• Offers excellent dust release Incorporate design according to requirements Various installation options available, easy to install and save time.
• Airtight gasket accessories available Applications in many temperatures conditions. filter media options: Filter media Options: Water and oil repellent Nreatment. Antistatic treatment. PTFE membrane treatment.
| Availability: | |
|---|---|
| Quantity: | |

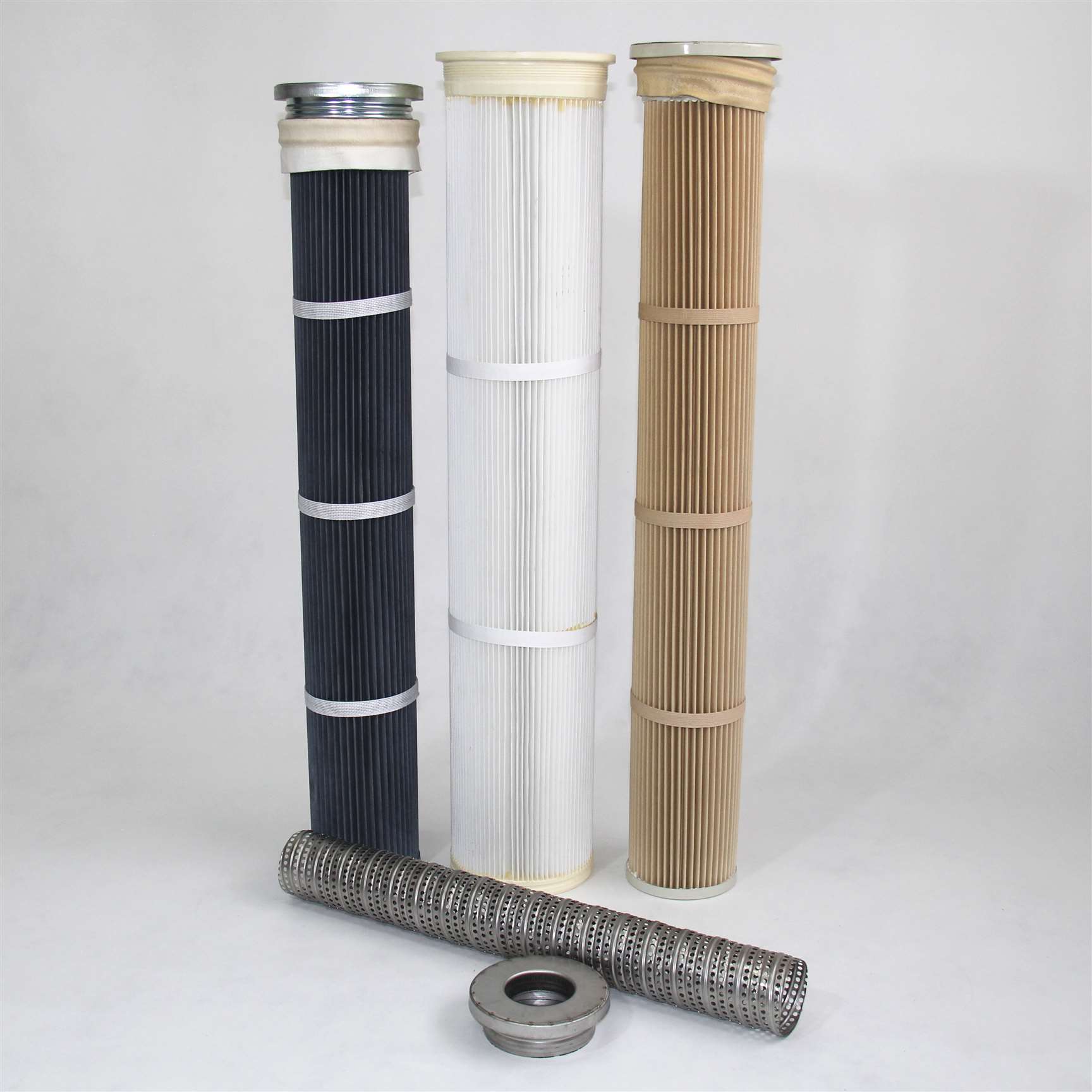

The Pleated Bag Filter is an advanced dust filtration solution designed to increase filter surface area and improve filtration efficiency without changing the size of existing dust collector housings.By replacing traditional filter bags and cages with pleated filter bags, users can achieve longer service life, reduced maintenance, and lower pressure drop.Ideal for retrofit applications in pulse jet, reverse air, and shaker baghouses.
Increased Filter Surface Area: 2–3 times greater filtration area compared to traditional bags.
Efficient Dust Removal: High efficiency ≥99.9% for fine dust and submicron particles.
Direct Retrofit Design: No need to modify existing baghouse systems.
Durable Construction: Heat and chemical resistant materials such as polyester, PPS, aramid, or PTFE.
Stable & Long-Lasting: Pleated structure ensures structural stability and consistent airflow.
Customizable Options: Various lengths, diameters, pleat counts, and end cap styles available.
Parameter | Specification |
Filter Media | Polyester, Aramid, PPS, PTFE (customizable) |
Filtration Efficiency | ≥99.9% |
Length | 300 mm – 2000 mm (customized) |
Diameter | 120 mm – 150 mm |
Pleat Count | 20 – 80 pleats (depending on length) |
Operating Temperature | Up to 260°C (depends on media) |
End Cap | Metal / Polyurethane / Customized |
Inner Support | Integrated metal core (no need for external cage) |
Cleaning Method | Pulse Jet / Reverse Air Compatible |
Surface Finish | Antistatic / Oil & Water Repellent / PTFE Membrane |
Cement and Lime Plants
Steel and Metal Processing
Chemical and Petrochemical Industries
Woodworking & Furniture Dust Extraction
Mining and Bulk Material Handling
Power Plants and Industrial Boilers
Food and Pharmaceutical Facilities
Individually packed with protective film
Palletized packaging for safe global transport
OEM branding and labeling available
Quick turnaround time for custom orders
Retrofit-ready for most industrial baghouses
Higher performance and longer lifespan than traditional bags
Energy-saving through reduced pressure drop
Factory-direct pricing with reliable lead times
Widely trusted by global industrial dust control integrators
