• Imported spun bonded polyester with PTFE membrane, microporou Offers 99.99+% filter efficiency.
• Wide pleat spacing and smooth, hydrophobic PTFE provides excellent particle release
• Excellent resistance to chemical erosion.
• Applicable temperature: 93-135°C.
| Availability: | |
|---|---|
| Quantity: | |

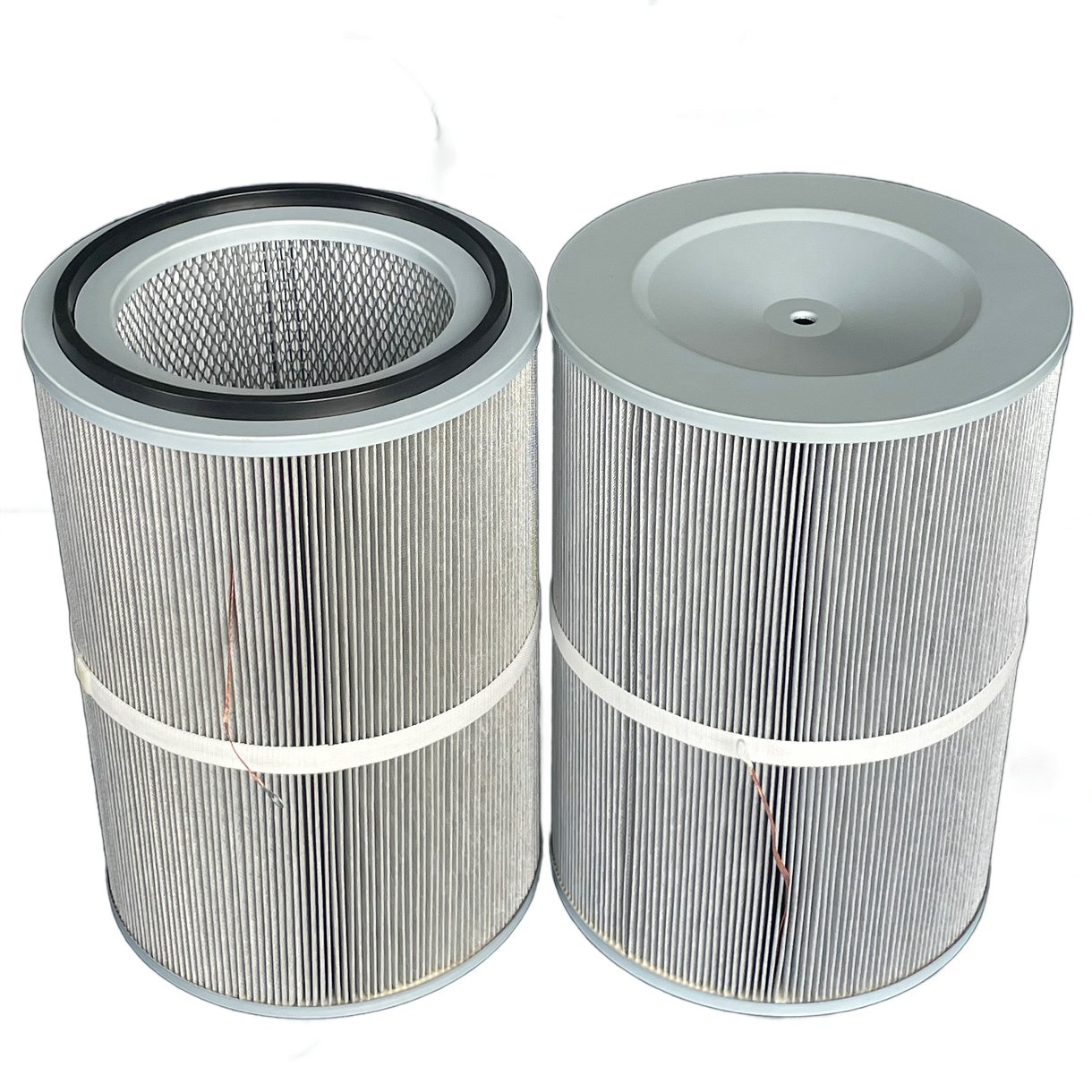

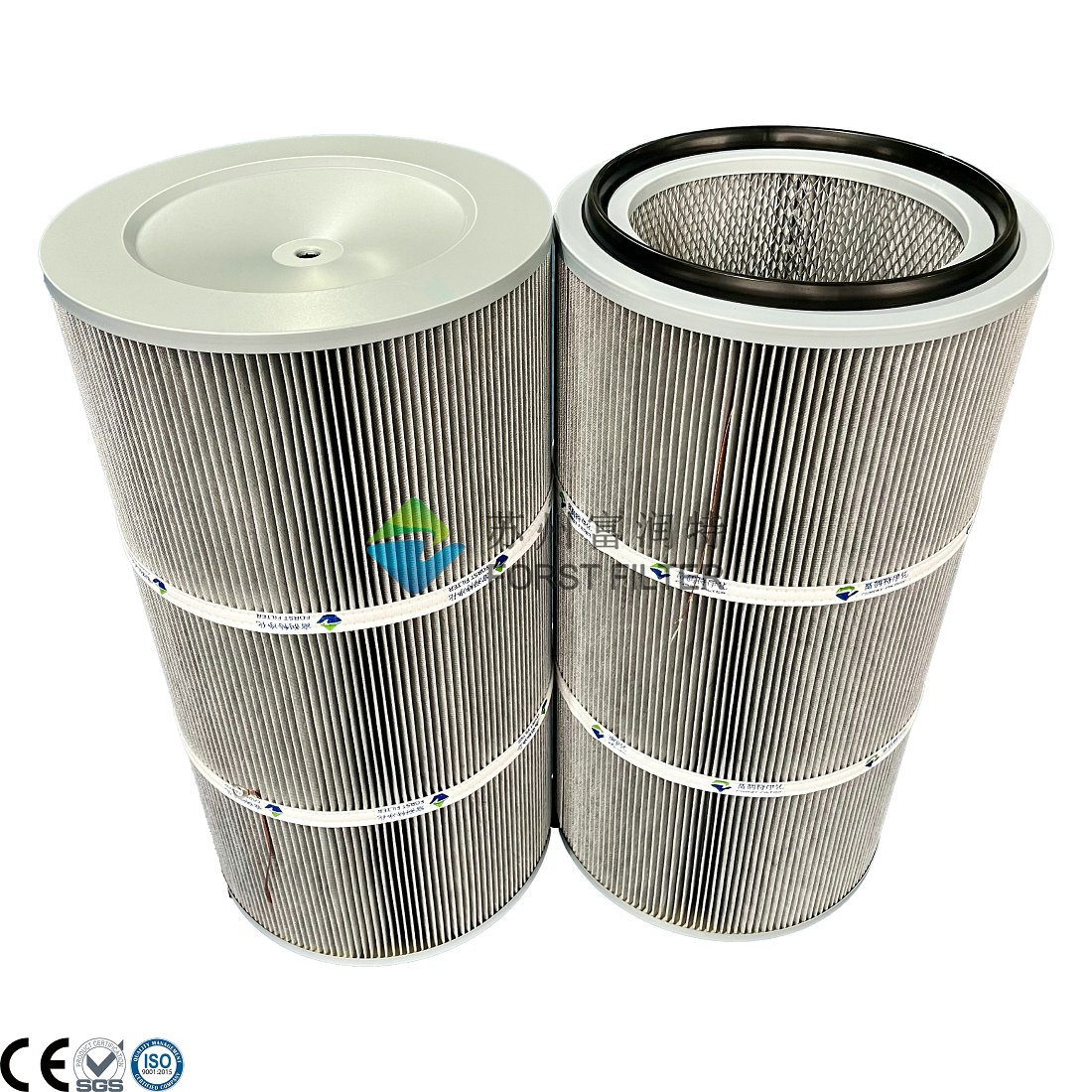

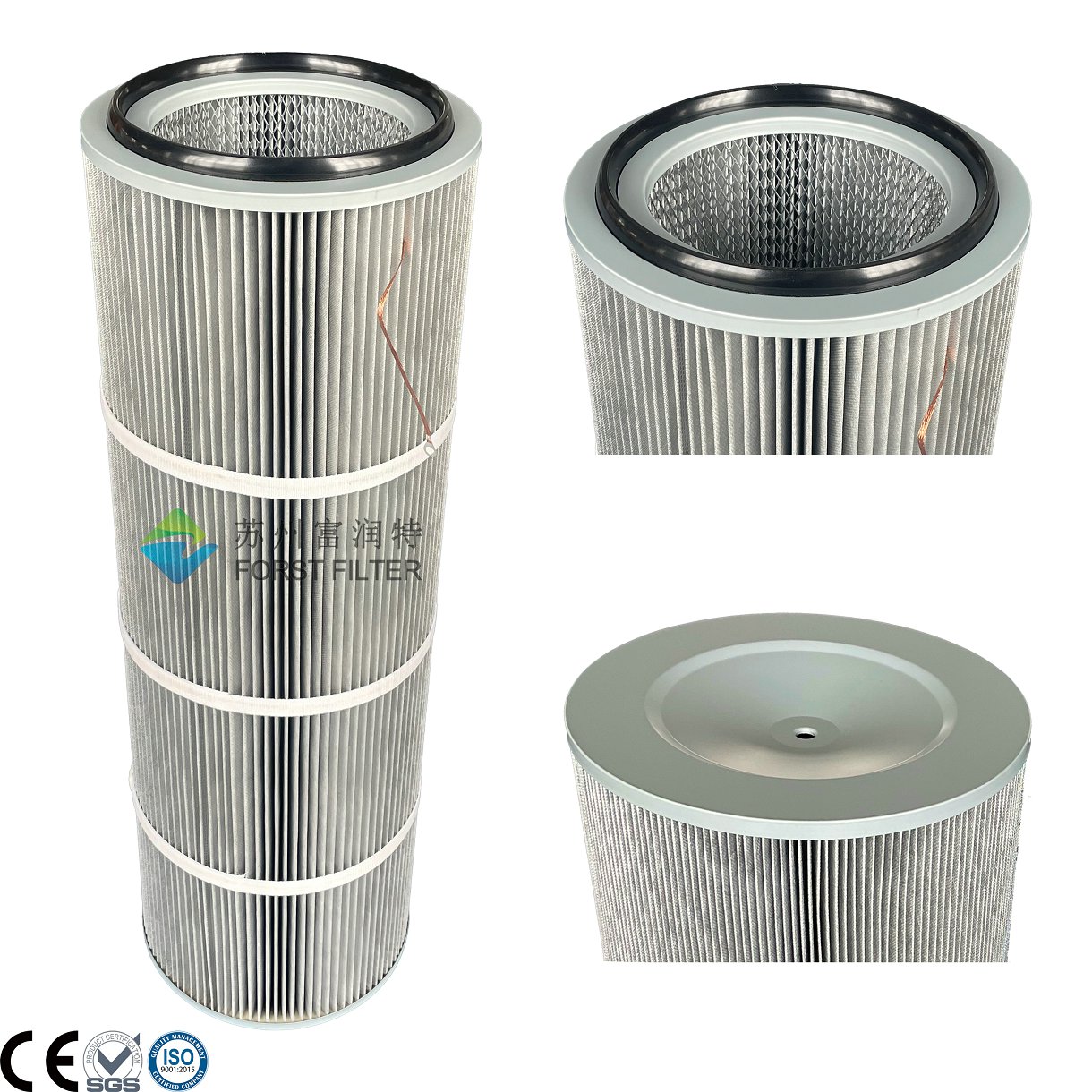

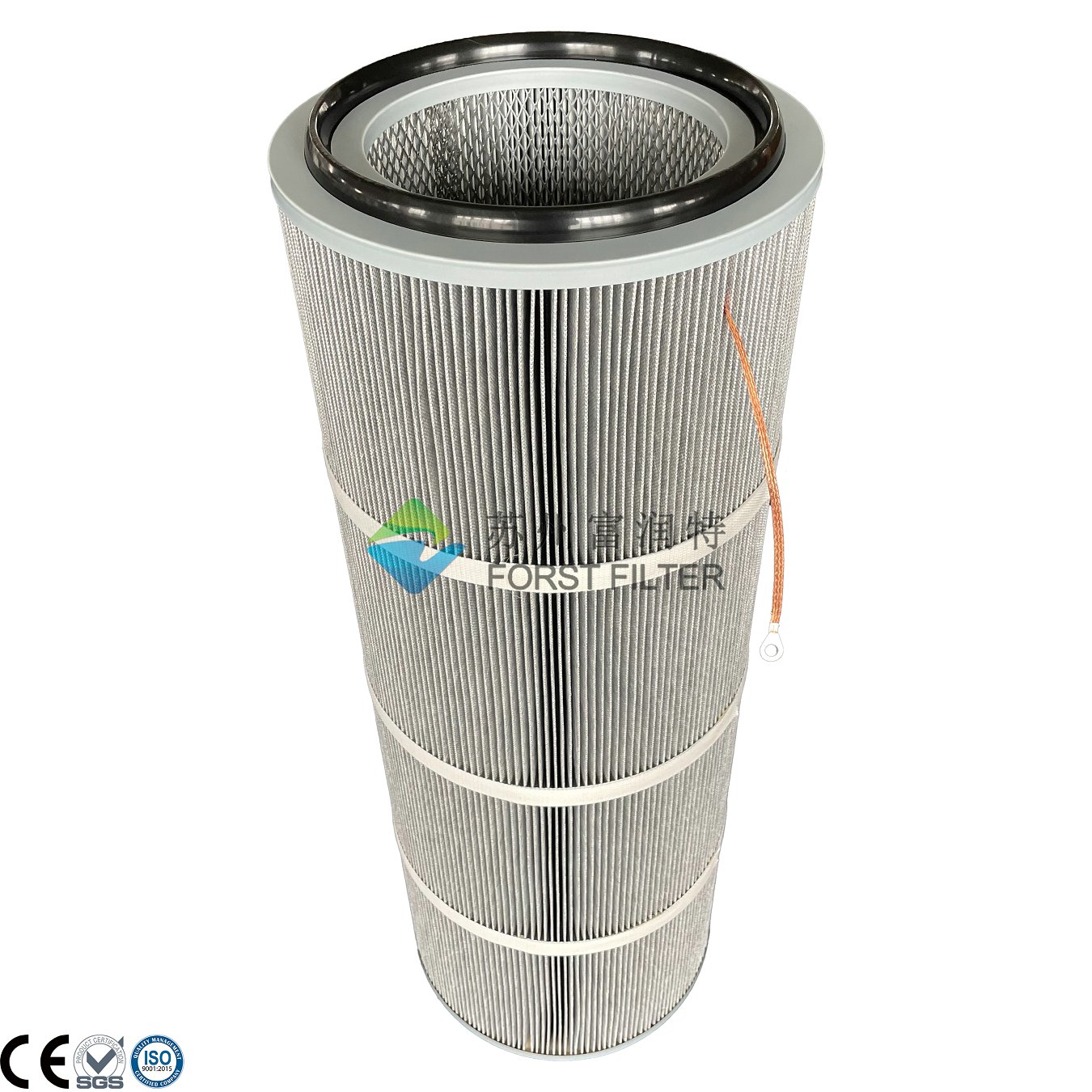

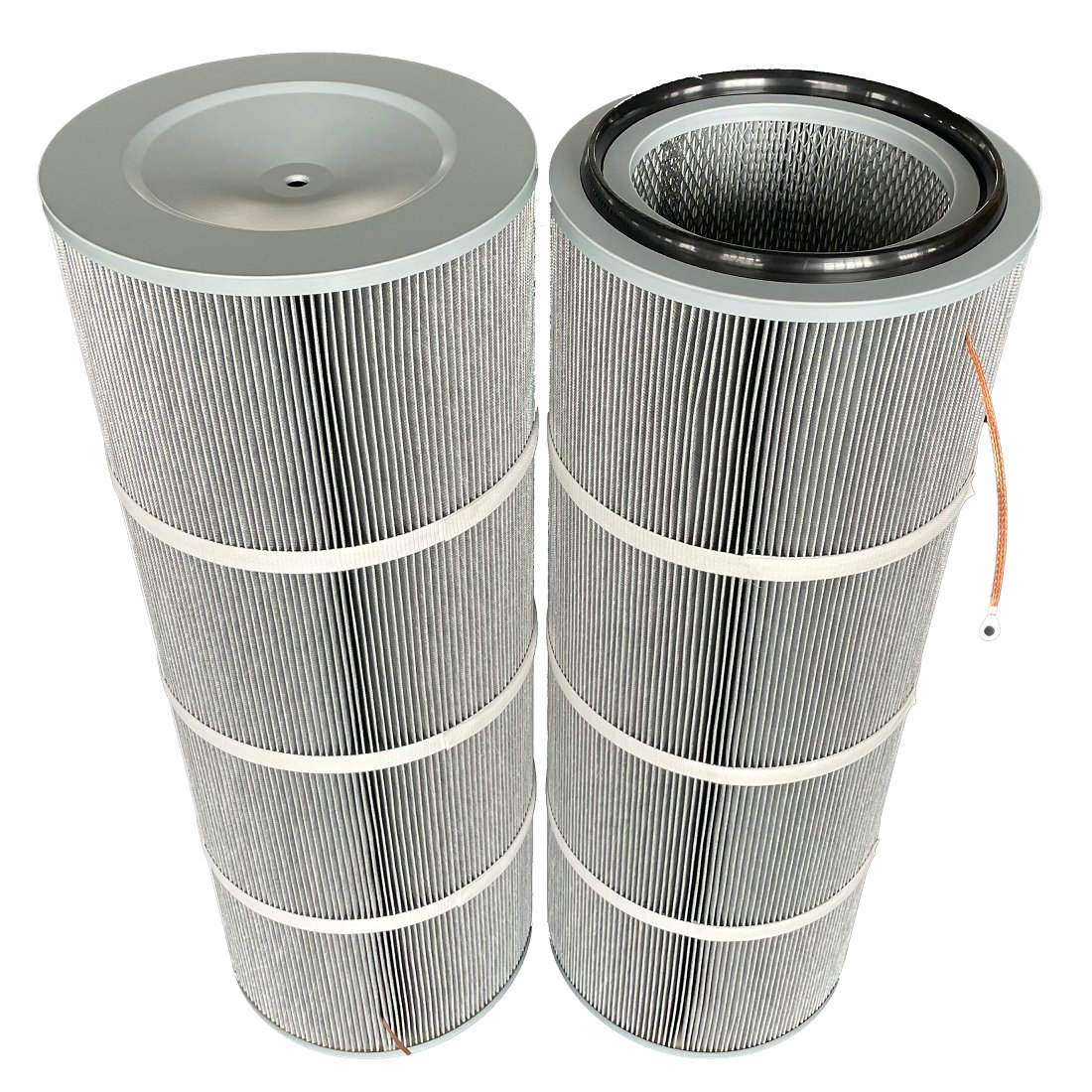

This Anti-Static Polyester Cylindrical Dust Filter Cartridge is designed for industrial dust collection systems operating in ATEX or flammable dust environments. It features conductive polyester media to safely dissipate static charges, reducing the risk of explosion in high-risk zones. Widely used in powder coating, metal processing, and pharmaceutical dust extraction.
l Conductive Polyester Filter Media: Prevents electrostatic buildup in explosive environments.
l Cylindrical Pleated Structure: Maximizes surface area and ensures low pressure drop.
l Pulse Jet Cleaning Compatible: Allows automatic cleaning and extended lifespan.
l Low Surface Resistance: ≤10⁶ Ohms, compliant with ATEX safety requirements.
l Corrosion-Resistant Metal Core: Galvanized or stainless steel construction for durability.
l Custom Sizes & OEM Branding: Fits your system precisely and supports brand identity.
Parameter | Specification |
Filter Media | Conductive Polyester (Anti-Static) |
Filtration Efficiency | ≥99.9% @ ≥1.0μm |
Surface Resistance | ≤10⁶ Ω |
Outer Diameter | 325 mm (customizable) |
Length | 660 mm / 700 mm / Custom |
End Caps | Galvanized / Stainless Steel |
Inner Core | Expanded Metal Mesh |
Gasket Type | Conductive PU / EPDM / Neoprene |
Temperature Resistance | Up to 120°C |
Cleaning Method | Pulse Jet / Manual |
l Powder Coating & Paint Booths
l ATEX Zone Dust Collection
l Pharmaceutical Powder Handling
l Food Production with Fine Dust
l Aluminum & Metal Processing Plants
l Individually wrapped in PE film
l Cartons or palletized for bulk shipments
l OEM/ODM logo printing available
l Worldwide shipping by air, sea, or express
l ISO-Certified Production & Quality Control
l Anti-static solutions tailored to ATEX compliance
l Factory-direct pricing and fast turnaround
l Trusted supplier to EU and North American markets
