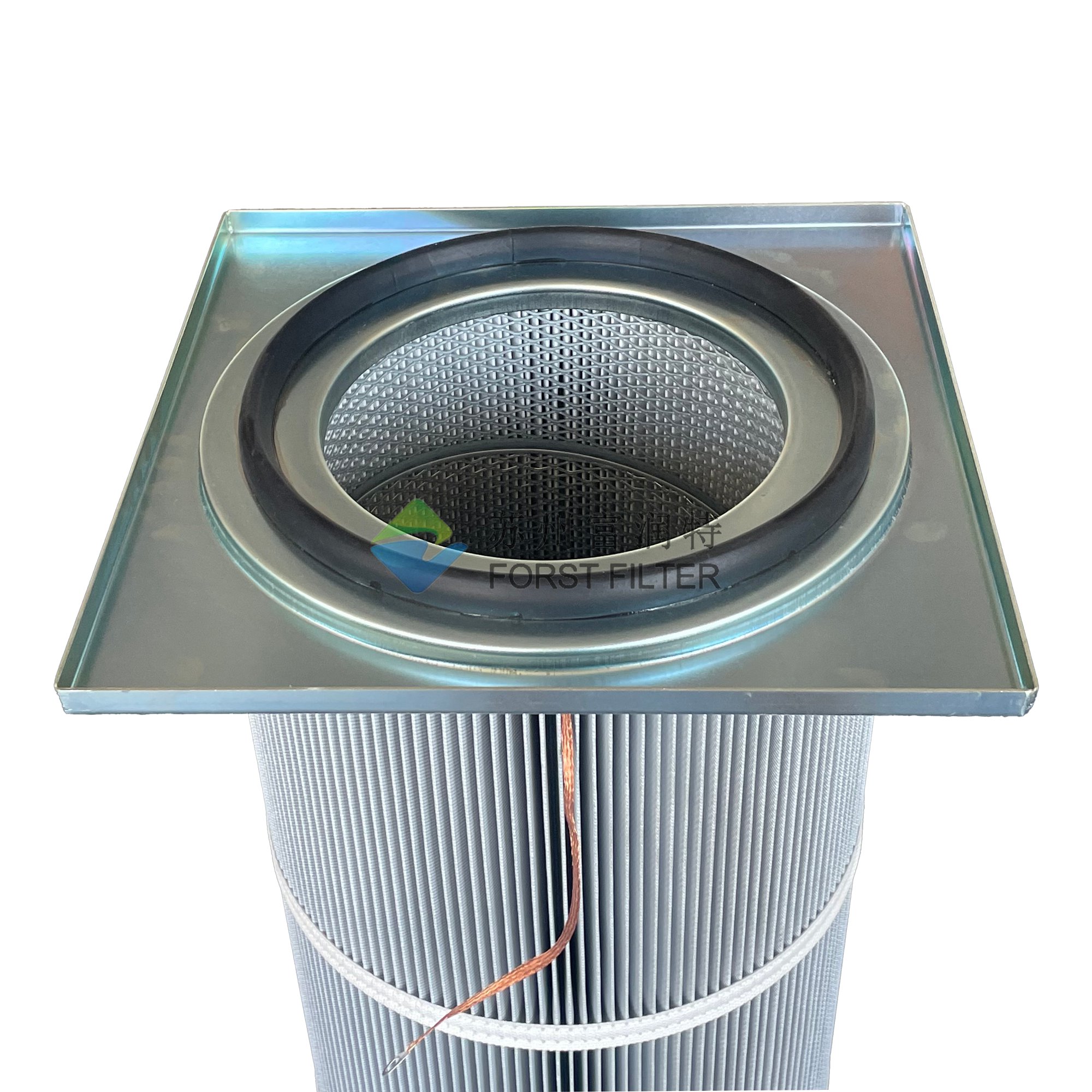

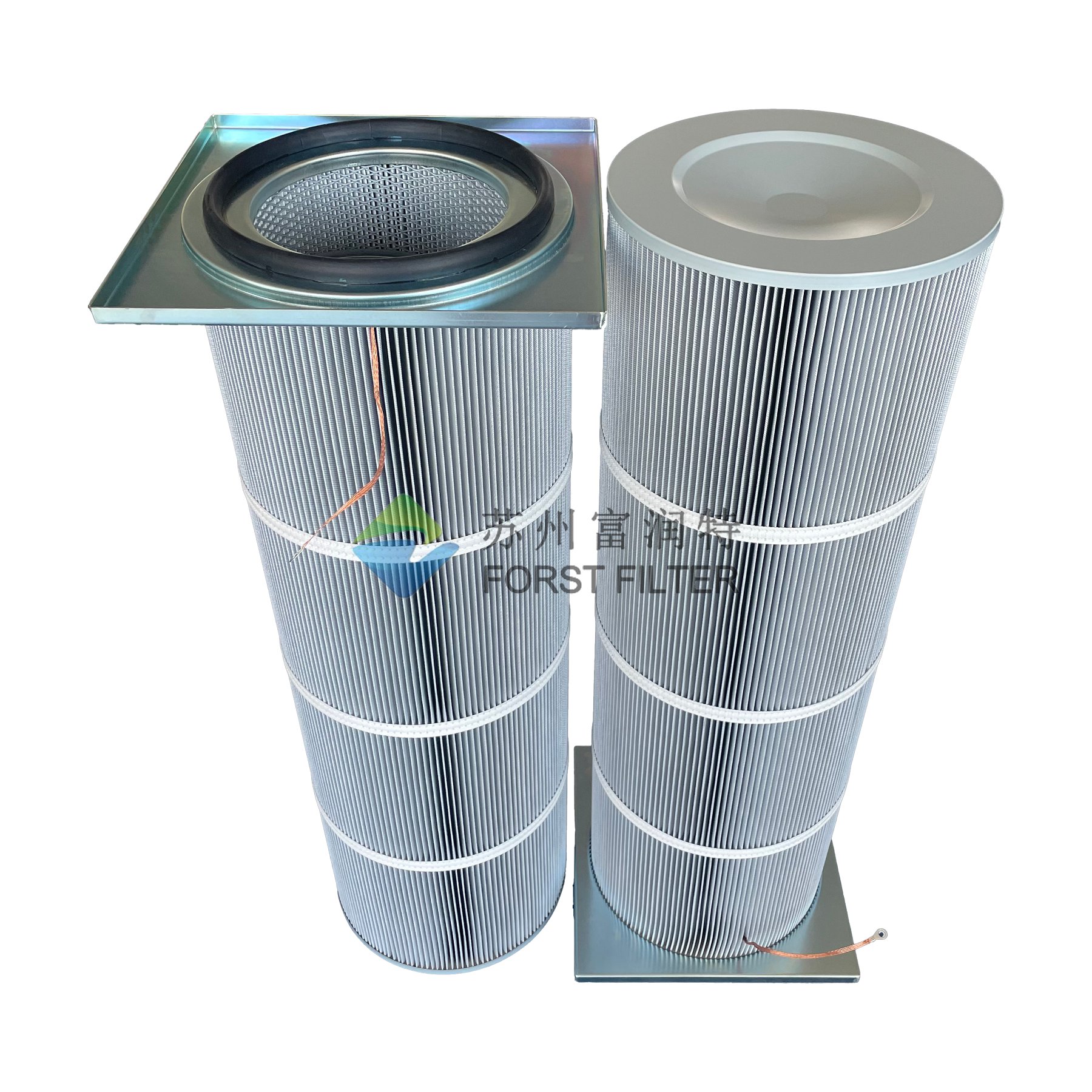

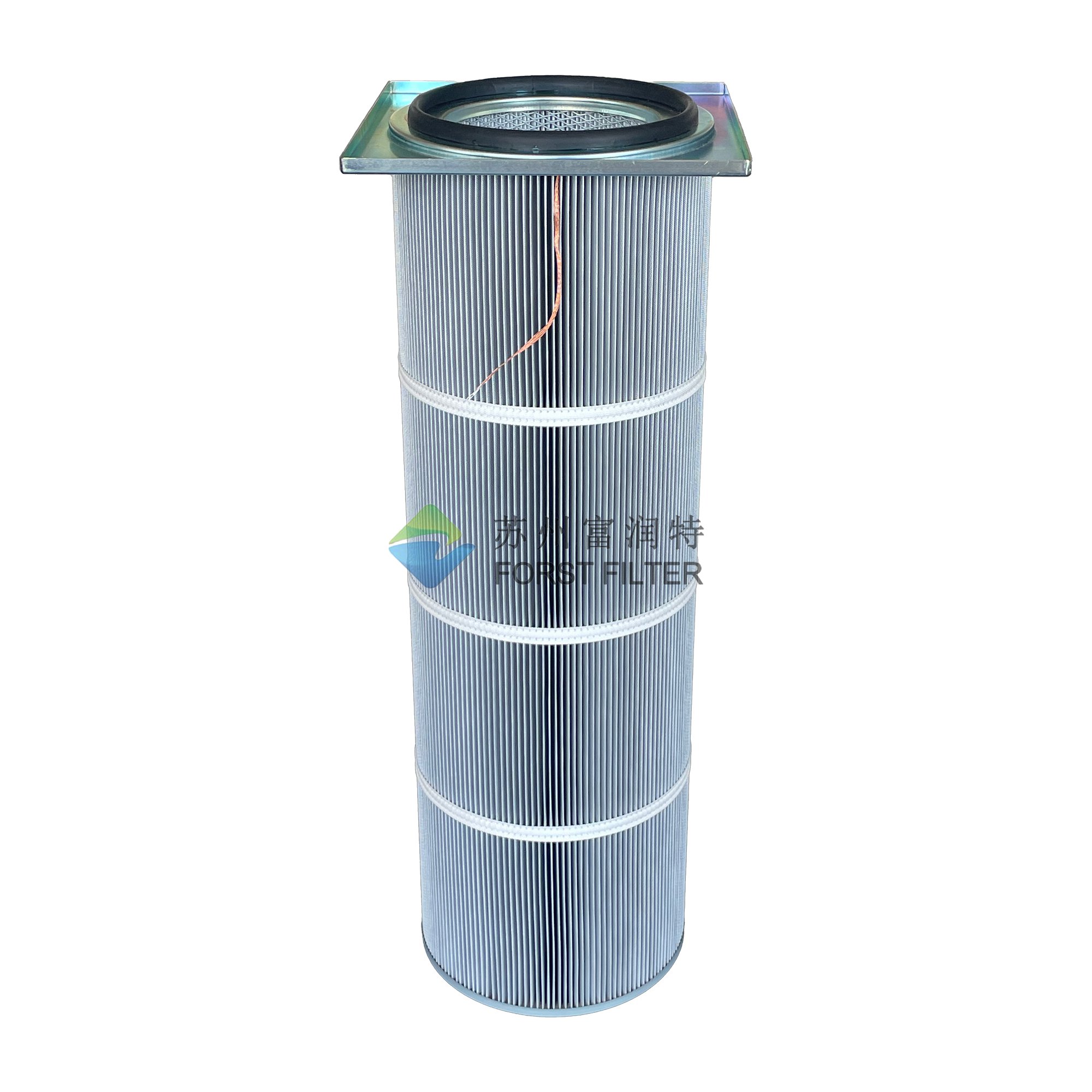

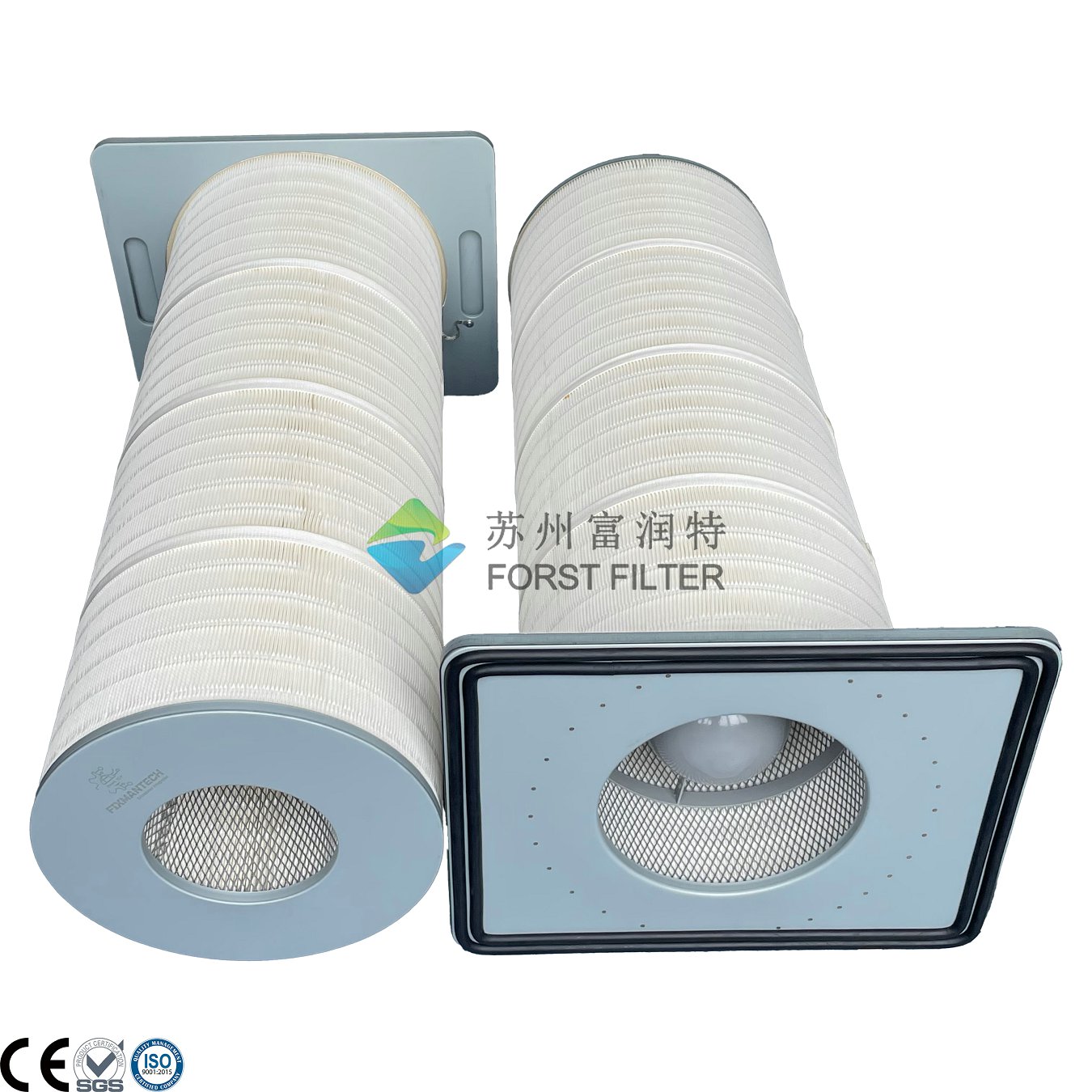

The Square Flange Air Filter Cartridge is designed for efficient dust filtration in industrial dust collectors requiring square or rectangular flange-mounted filters. With high-quality pleated filter media and a precision-engineered square flange, this cartridge ensures reliable sealing, high airflow, and excellent particle capture. It is ideal for use in applications such as powder coating, shot blasting, sanding, welding fumes, and general dust extraction systems.
Square Flange Mounting: Ensures secure installation and optimal sealing in square flange housings.
High Dust Holding Capacity: Pleated filter media increases surface area, reducing maintenance frequency.
Low Pressure Drop: Maintains consistent airflow and energy efficiency across its lifespan.
Durable Construction: Galvanized steel or stainless steel end caps, expanded metal core, and industrial-grade gasket.
Versatile Filter Media Options: Polyester, cellulose, nano fiber, anti-static, or flame-retardant available.
Custom Sizes Supported: Tailored height, width, flange size, and pleat count upon request.
Parameter | Specification |
---|---|
Filter Media | Polyester, Cellulose, Nano Fiber, PTFE, etc. |
Filtration Efficiency | ≥99.9% for particles ≥0.3μm |
Flange Type | Square or Rectangular Mounting Flange |
Flange Size | 320×320 mm, 350×350 mm, or custom |
Length | 660 mm / 700 mm / Customizable |
Outer Diameter | 325 mm / 350 mm (as applicable) |
End Cap Material | Galvanized or Stainless Steel |
Gasket Type | Urethane, Rubber, or Silicone |
Operating Temperature | Up to 120°C (standard media) |
Cleaning Method | Pulse Jet / Reverse Air Compatible |
Powder Coating Booths
Shot Blasting and Sanding Systems
Welding and Grinding Dust Extraction
Woodworking and Composite Processing
Chemical and Food Production Facilities
Cement, Mining, and Foundry Industries
Packed in PE bags and protective cartons
Palletized for international transportation
Custom labeling and barcode options available
Fast global delivery and OEM/ODM services supported
Precision flange design for stable mounting and sealing
Wide compatibility with industrial dust collectors
High filtration performance and extended service life
Direct factory supply, fast turnaround, and flexible customization
Trusted by industrial clients across Europe, America, and Southeast Asia
