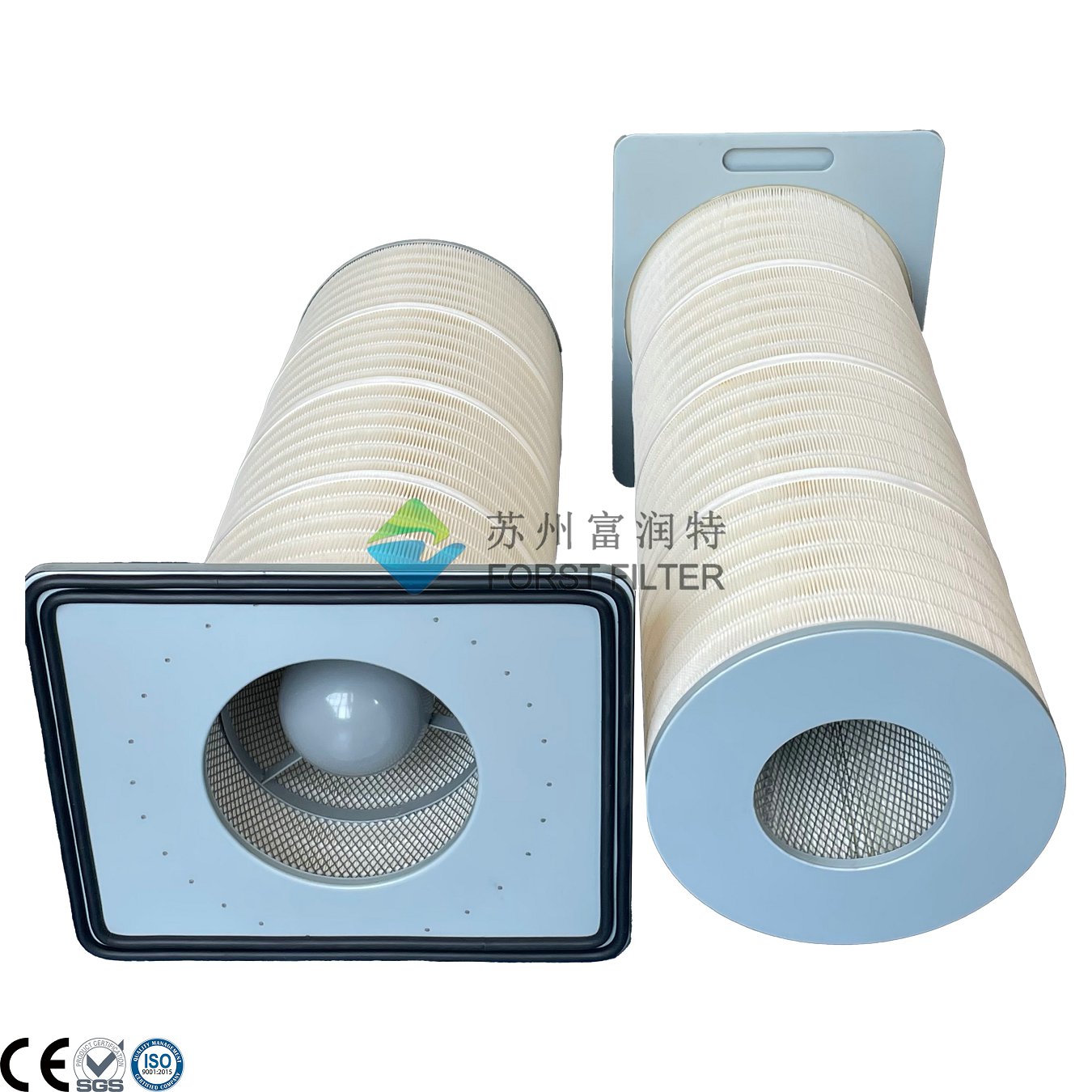

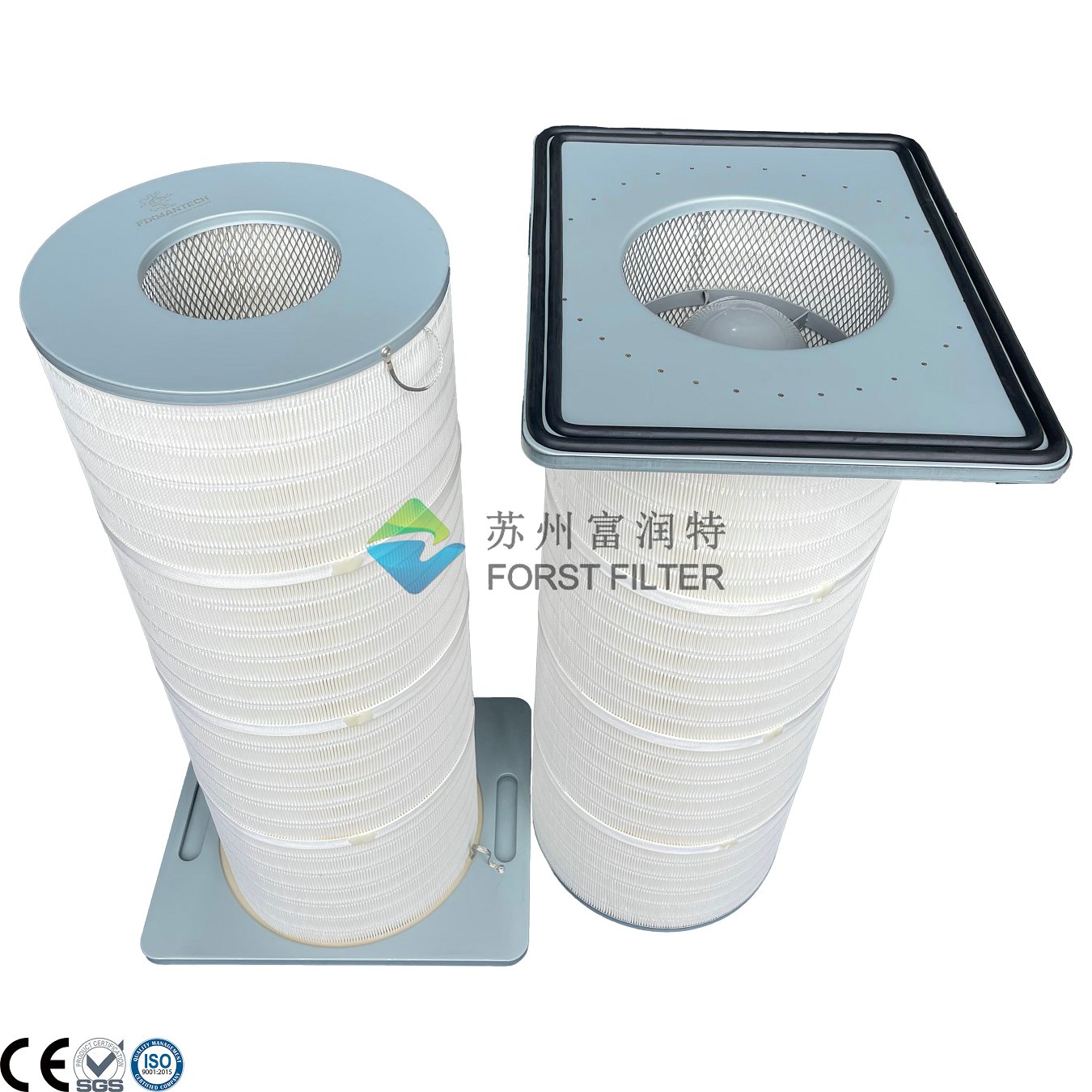

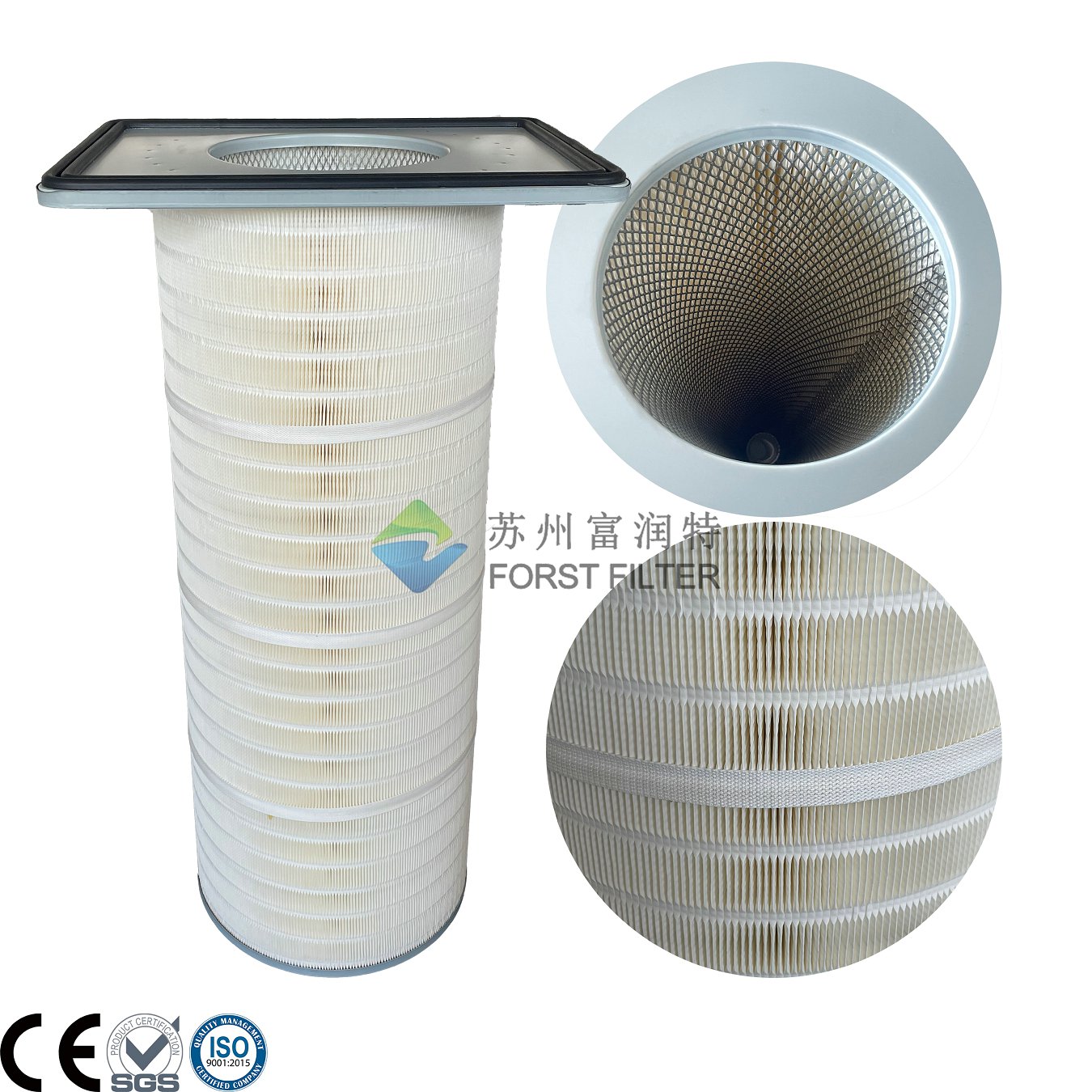

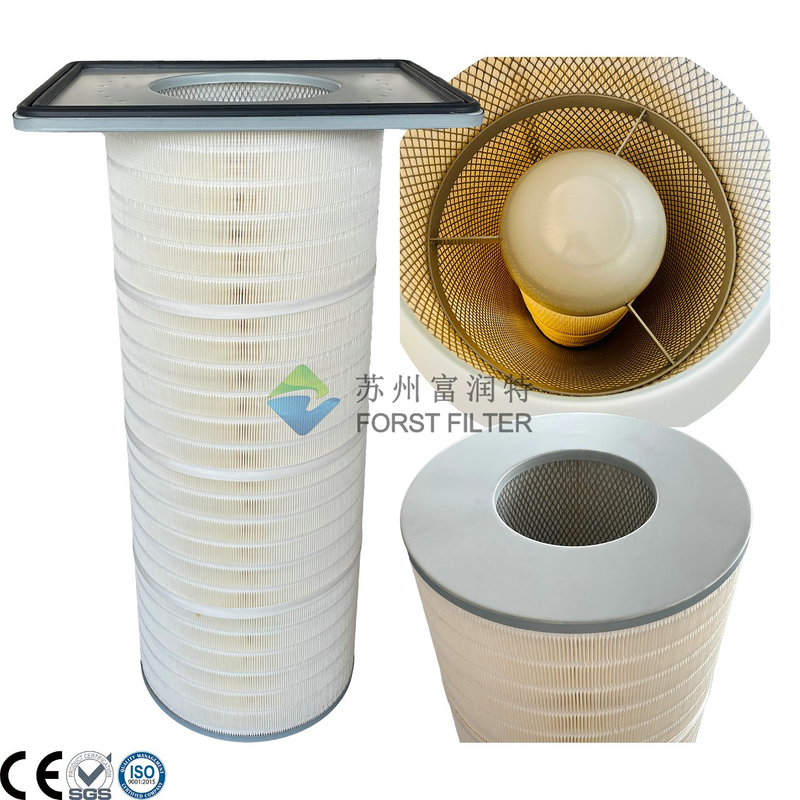

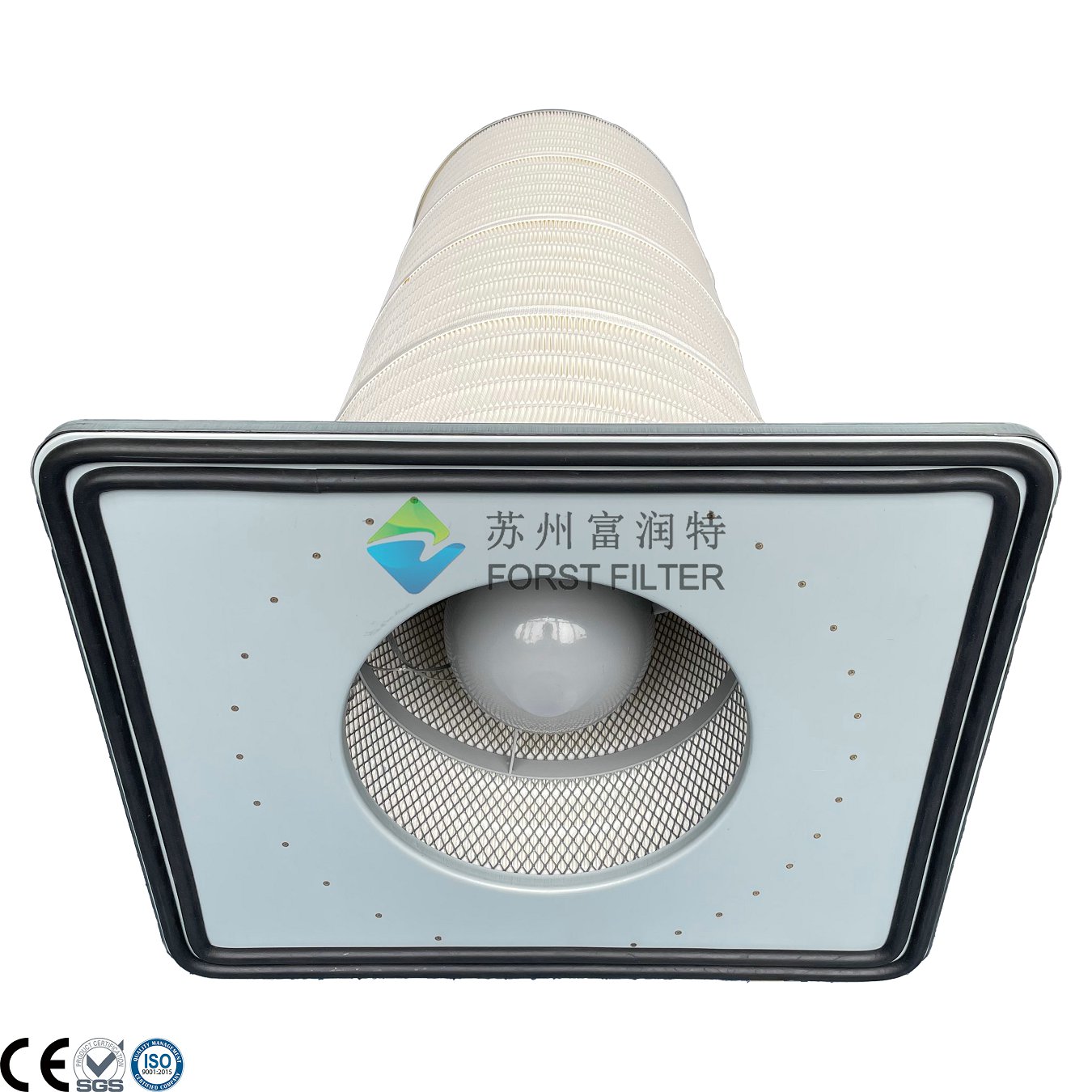

High-Efficiency Square Cap Dust Collector Filter Cartridge
Wood Pulp Paper Media | Secure Fit | Long Service Life
Product Overview
The Square Cap Dust Collector Filter Cartridge is designed with premium wood pulp paper filter media and a corrosion-resistant square clamp cap. This filter provides high dust capture efficiency, excellent air permeability, and easy installation, making it ideal for demanding industrial dust collection systems.
Key Features
Features
High-quality wood pulp paper filter media
Square cap clamp design for secure installation
Reinforced inner & outer metal support cage
Advantages
Quick installation and replacement with no special tools required
High filtration precision for fine dust particles
Strong structural stability for heavy-duty operation
Benefits
Improves workplace air quality
Extends dust collector service life
Reduces maintenance downtime and costs
Applications
Perfect for dust collection systems in:
Woodworking
Metalworking
Painting & Coating
Food Processing
Pharmaceutical Manufacturing
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | FS-WP-SQ-001 / FS-WP-SQ-002 / Custom |
| Filter Media | Wood pulp paper |
| Filtration Efficiency | ≥99.0% @ 1μm |
| Outer Diameter | 76mm / 100mm / Customizable |
| Length | 150mm – 1200mm optional |
| End Cap Type | Square cap clamp |
| Support Cage | Galvanized steel or stainless steel |
| Seal Material | Silicone / Viton optional |
| Max Operating Temperature | ≤80°C (wood pulp paper) |
| Operating Pressure | ~ -10kPa to +30kPa (reference) |
| Service Life | Typically 6–12 months (depends on conditions) |
| Weight | Varies by size |
| Certifications | ISO9001, material reports, and third-party test reports |
Customization Options
We offer custom-made wood pulp paper filter cartridges based on your requirements. Options include:
Size and length
Filter media grade
End cap design
Seal material
Provide details about your working environment (temperature, dust type, concentration) for an optimized solution.
