• Imported spun bonded polyester with PTFE membrane, microporou Offers 99.99+% filter efficiency.
• Wide pleat spacing and smooth, hydrophobic PTFE provides excellent particle release
• Excellent resistance to chemical erosion.
• Applicable temperature: 93-135°C.
| Availability: | |
|---|---|
| Quantity: | |

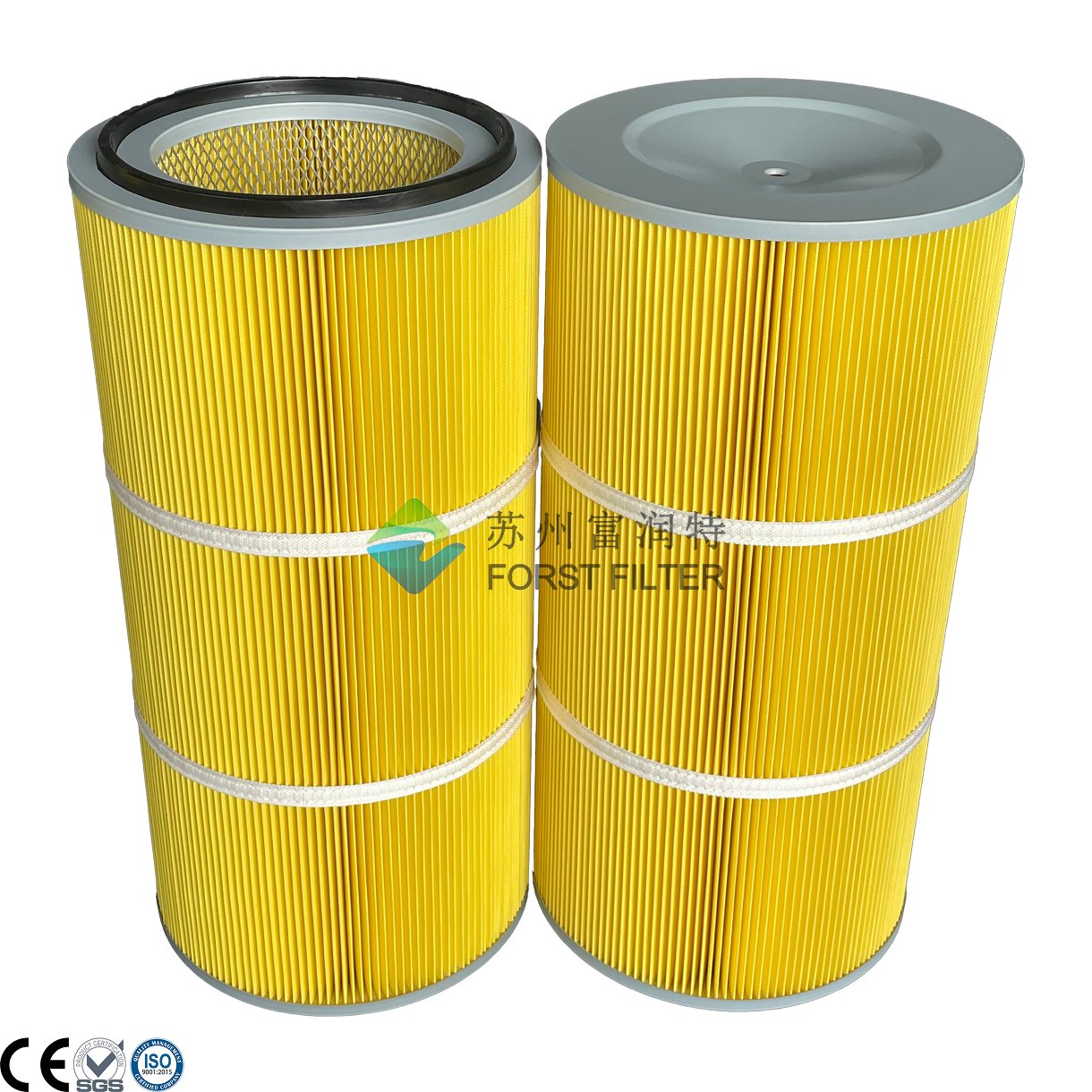

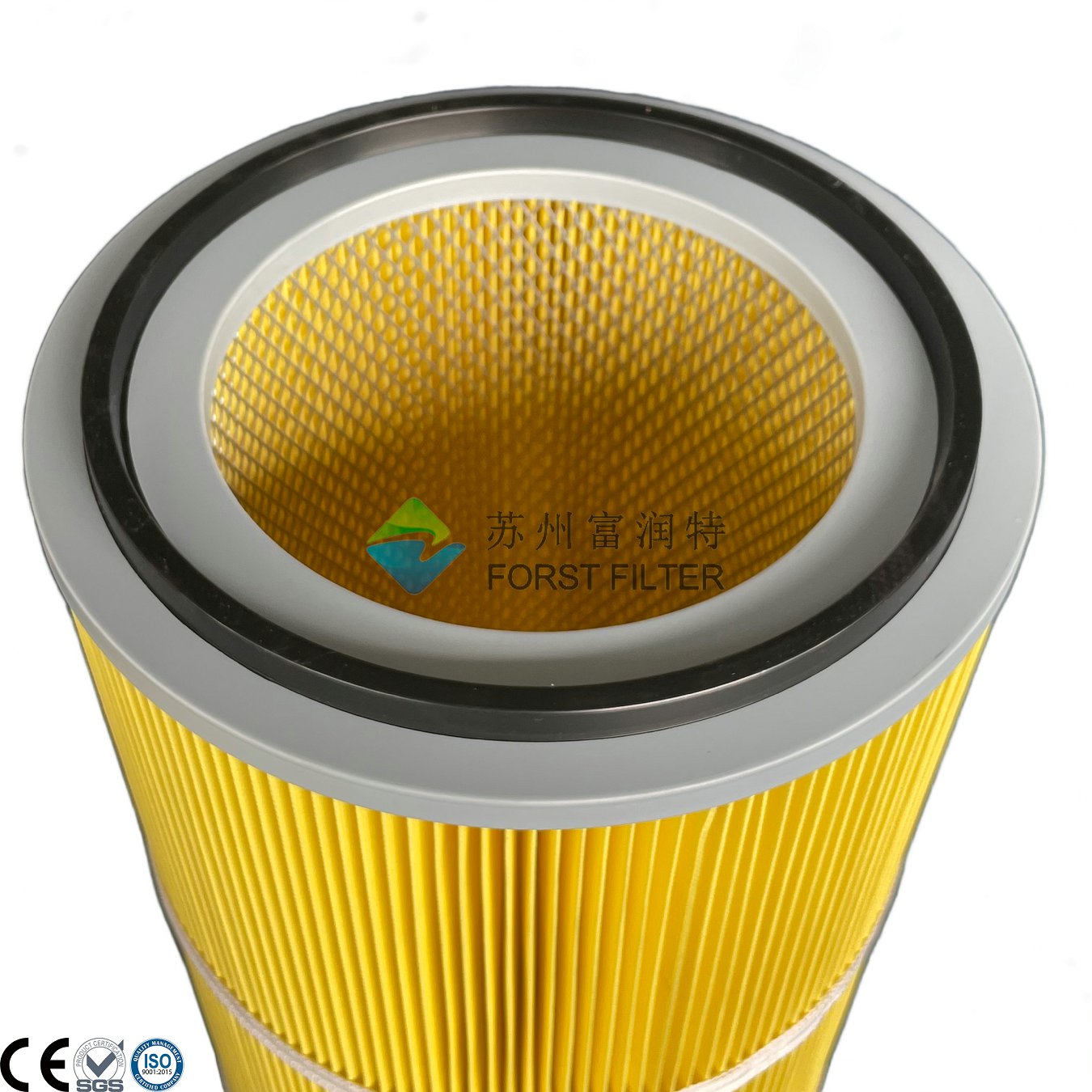

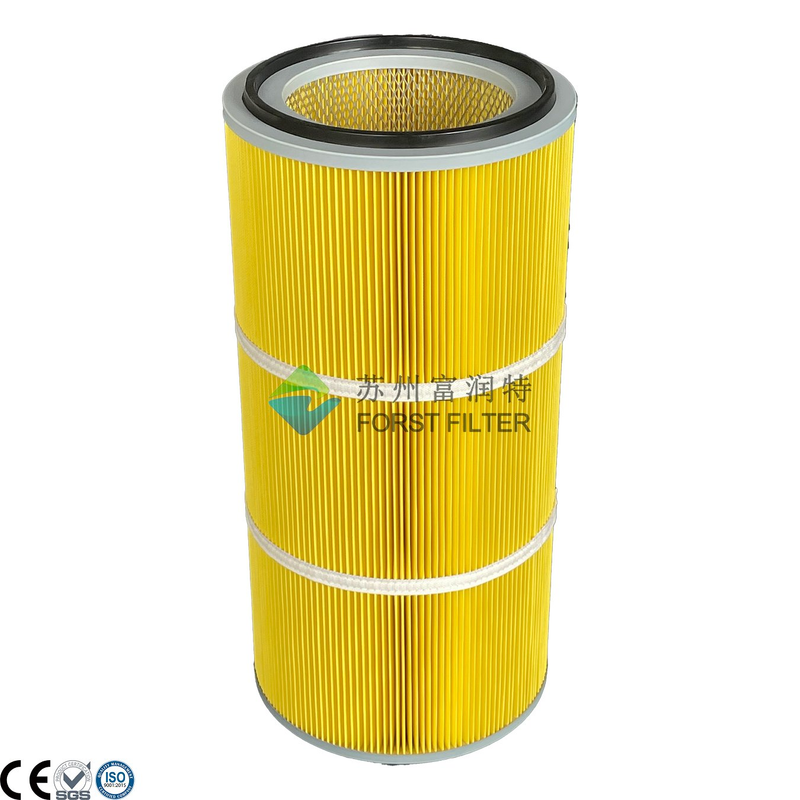

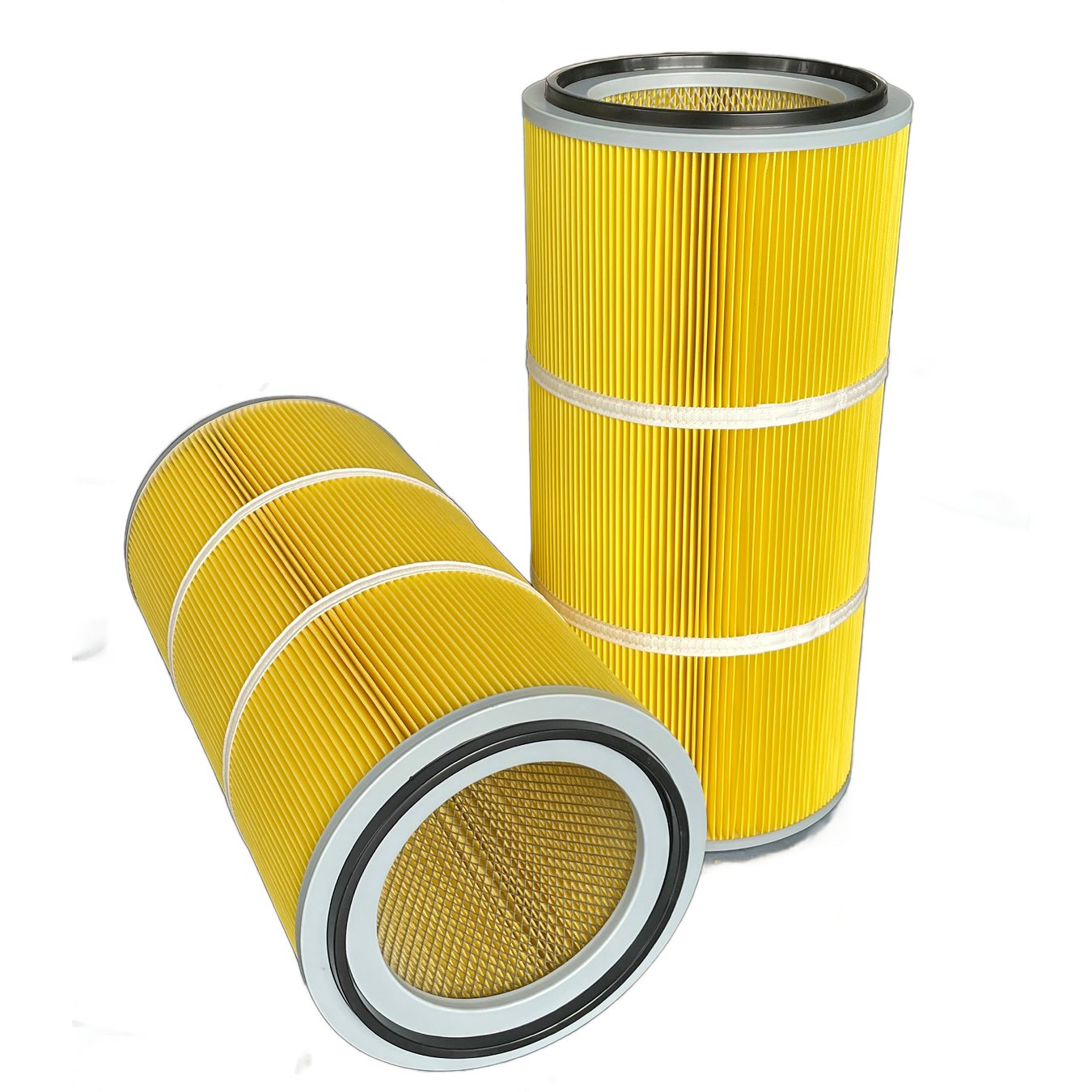

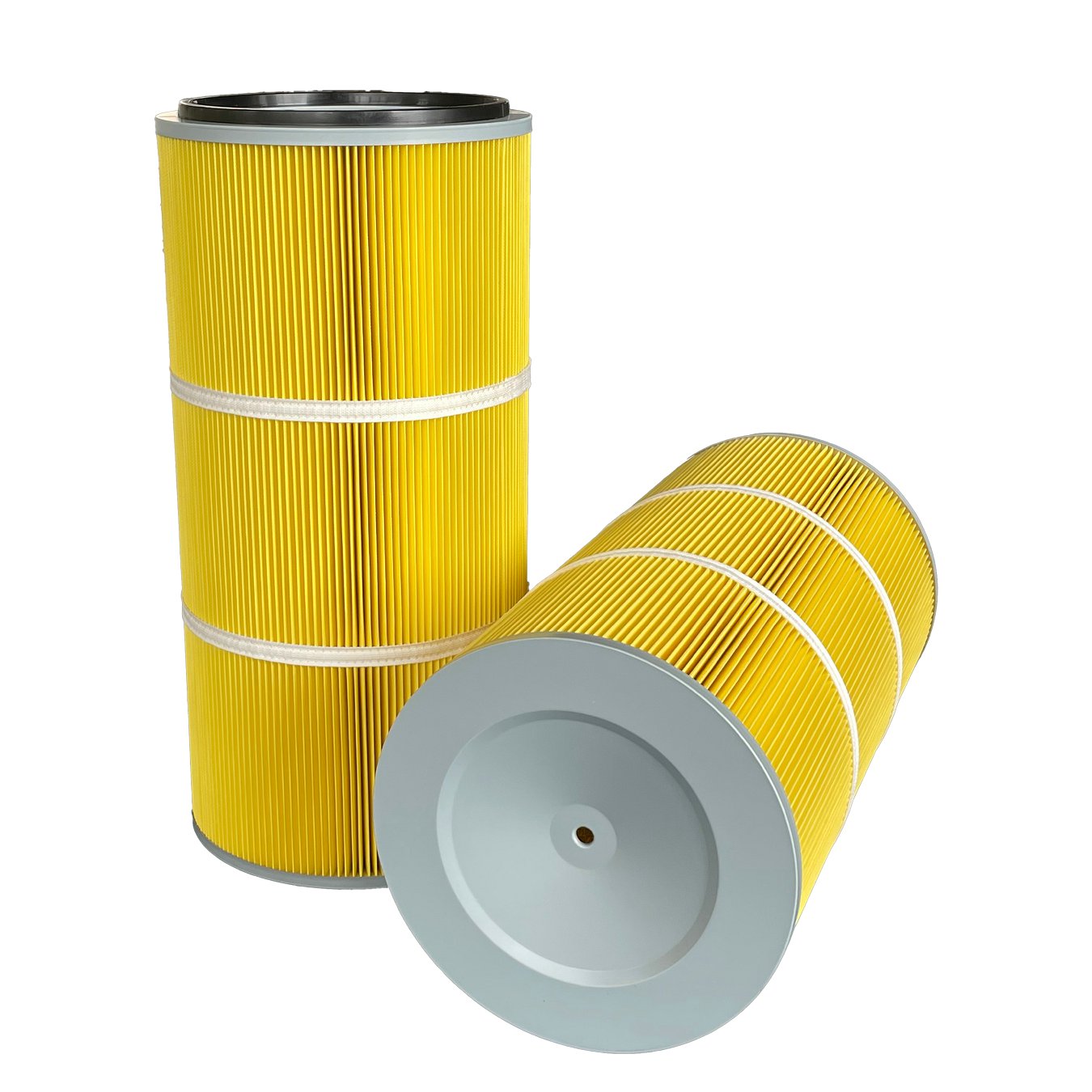

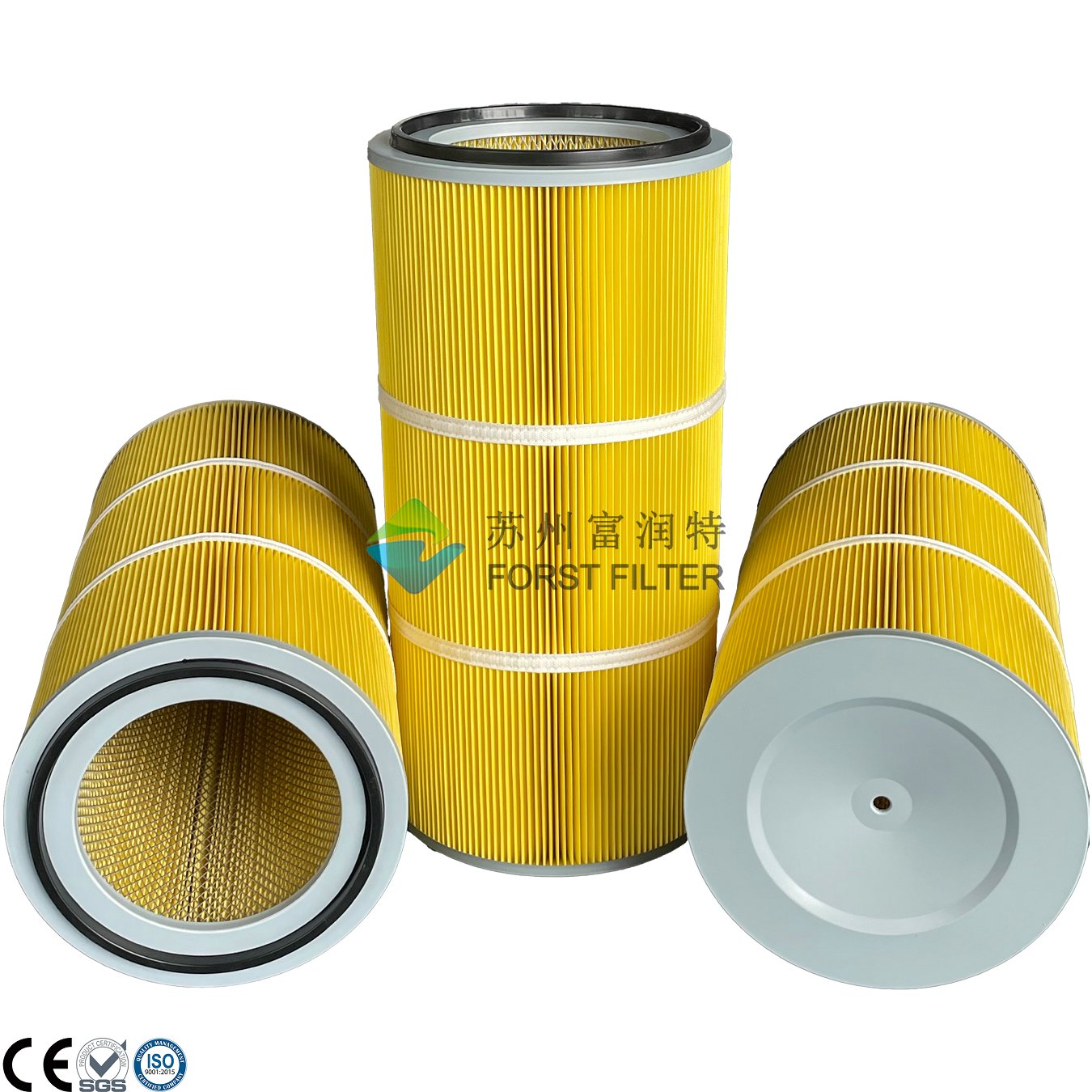

This yellow polyester cylindrical dust filter cartridge is specially treated to repel oil and water, making it the ideal solution for industrial dust collection in oily and humid environments. Built with durable materials and precision pleats, it ensures reliable filtration and extended service life.
Oil- and Water-Repellent Media: Prevents clogging and ensures consistent airflow.
Cylindrical Pleated Design: Maximizes filter surface area and reduces pressure drop.
Galvanized or Stainless End Caps: Durable and corrosion-resistant in harsh conditions.
Pulse Jet Cleaning Compatible: Supports automatic cleaning for reduced downtime.
High Visibility Yellow Surface: Easy to identify and monitor usage.
Custom Fit Available: Various sizes and gasket types to match OEM requirements.
Parameter | Specification |
Media | Yellow Polyester (Oil & Water Repellent) |
Filtration Efficiency | ≥99.9% @ ≥1.0μm |
Outer Diameter | 325 mm (customizable) |
Inner Diameter | 213 mm (or as requested) |
Length | 660 mm / 700 mm / Custom |
End Cap Material | Galvanized / Stainless Steel |
Inner Core | Expanded Metal Mesh |
Gasket | PU / Neoprene / Silicone |
Cleaning Method | Pulse Jet / Manual |
Temperature Resistance | -20°C to 120°C |
Metal Cutting, Grinding, and Welding Fume Control
Oil Mist and Moisture-Laden Dust Collection
Automotive and Foundry Workshop Dust Filtration
Powder Coating in Humid Conditions
Cement and Steel Plant Dust Control
Individually wrapped in protective film
Carton or pallet packaging available
OEM branding and labeling supported
Worldwide delivery via express, air, or sea
Over 10 years of industrial filtration manufacturing experience
Strict quality control with ISO-certified processes
Customizable to fit all major dust collector systems
Fast lead times and competitive factory pricing
Trusted supplier to clients across Europe, America, and Asia
