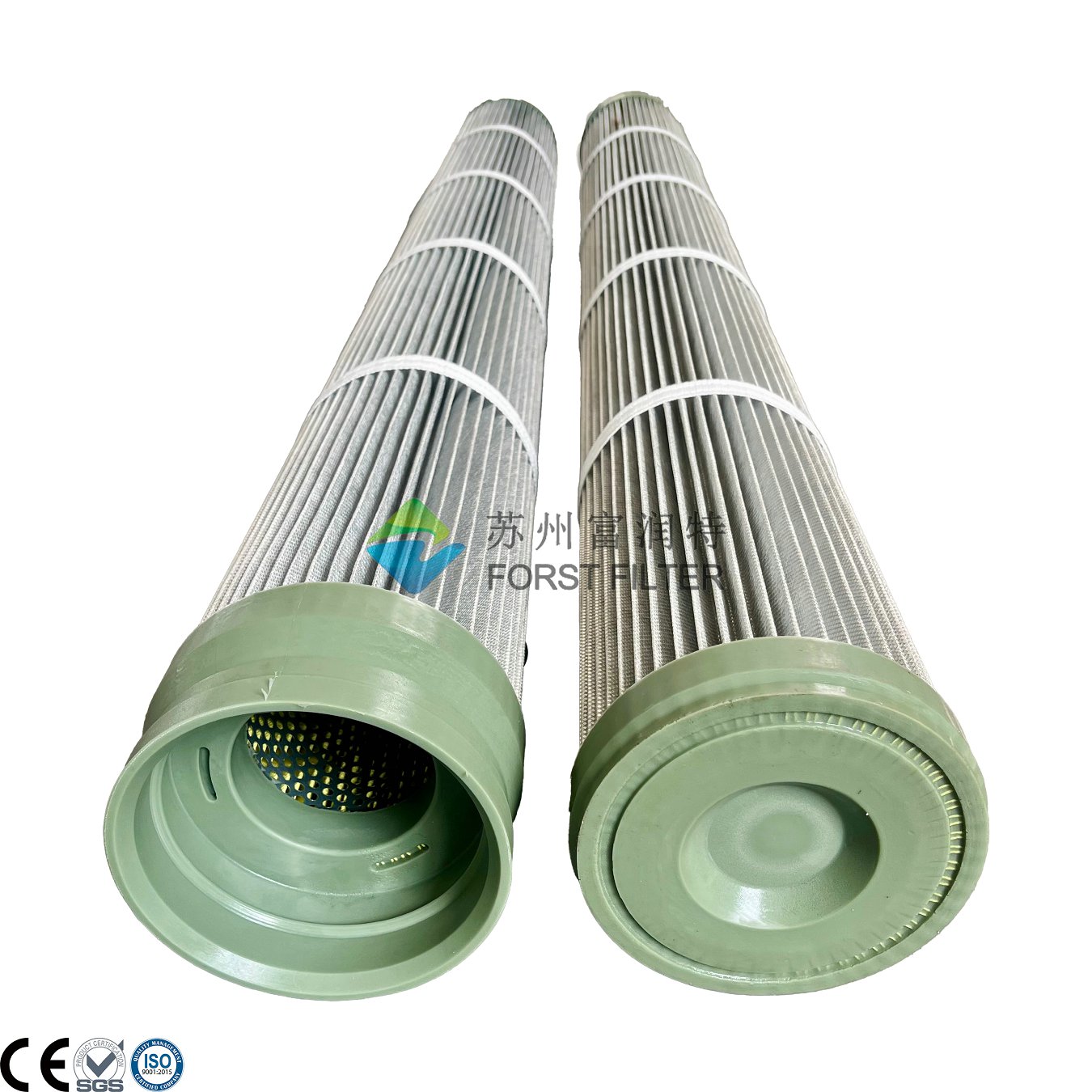

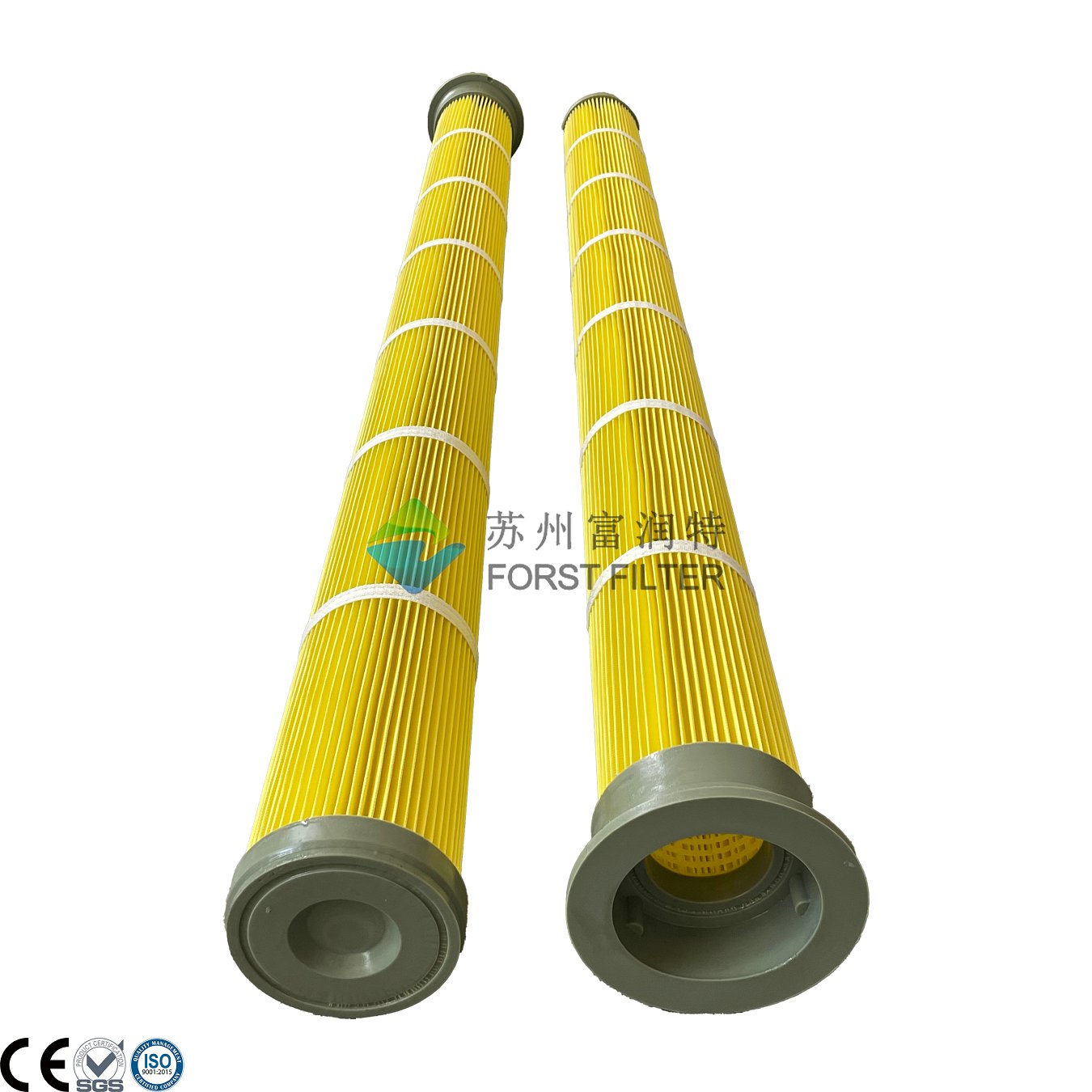

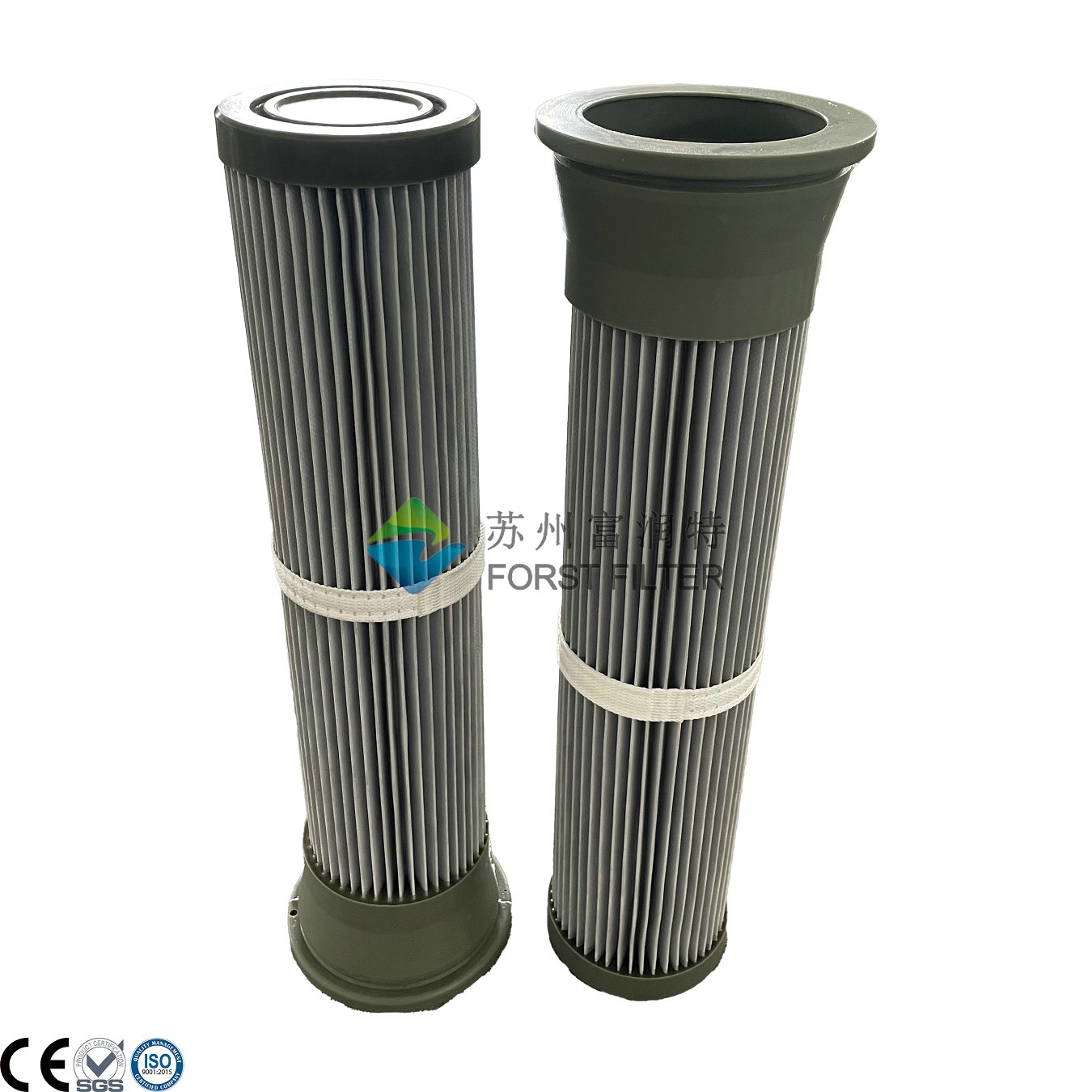

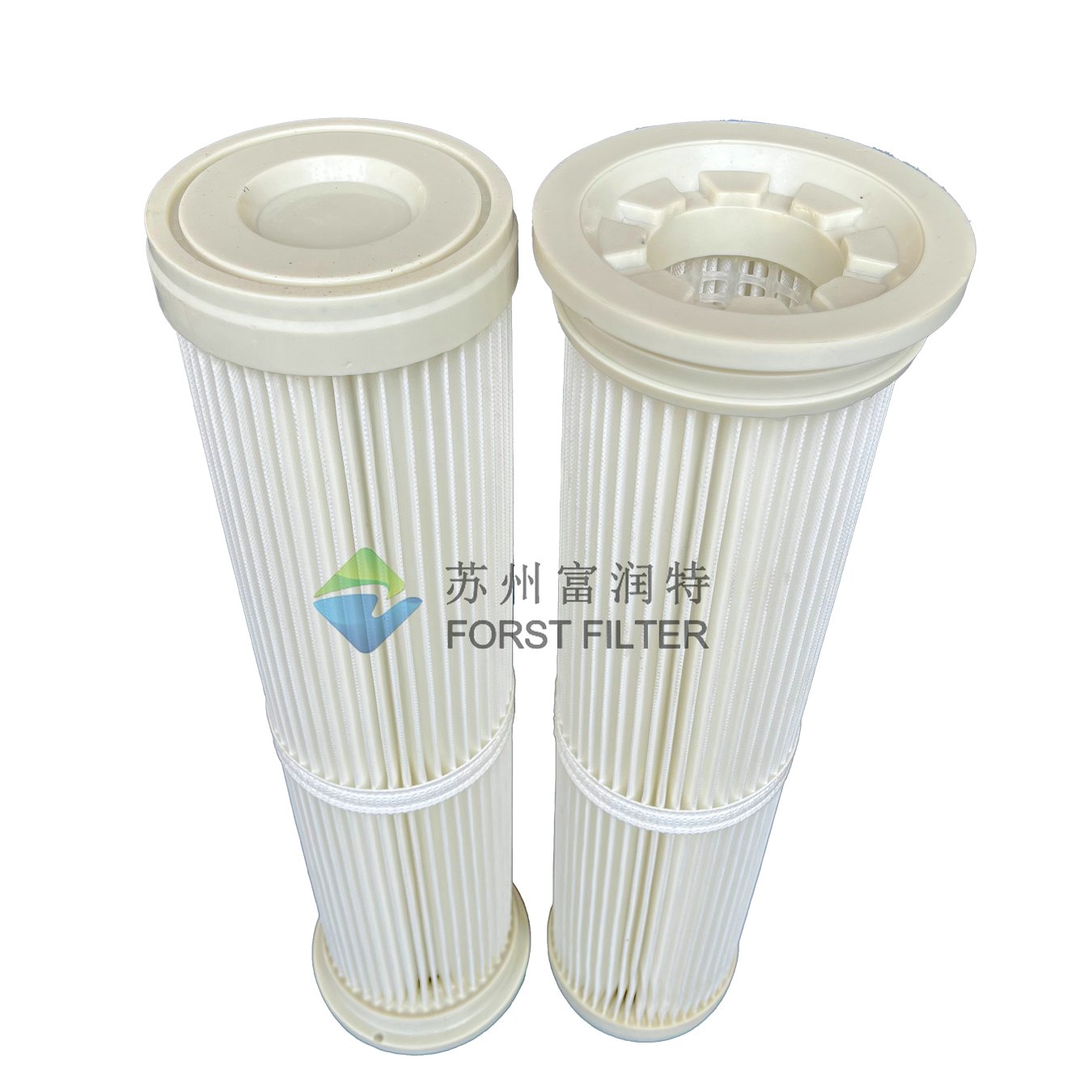

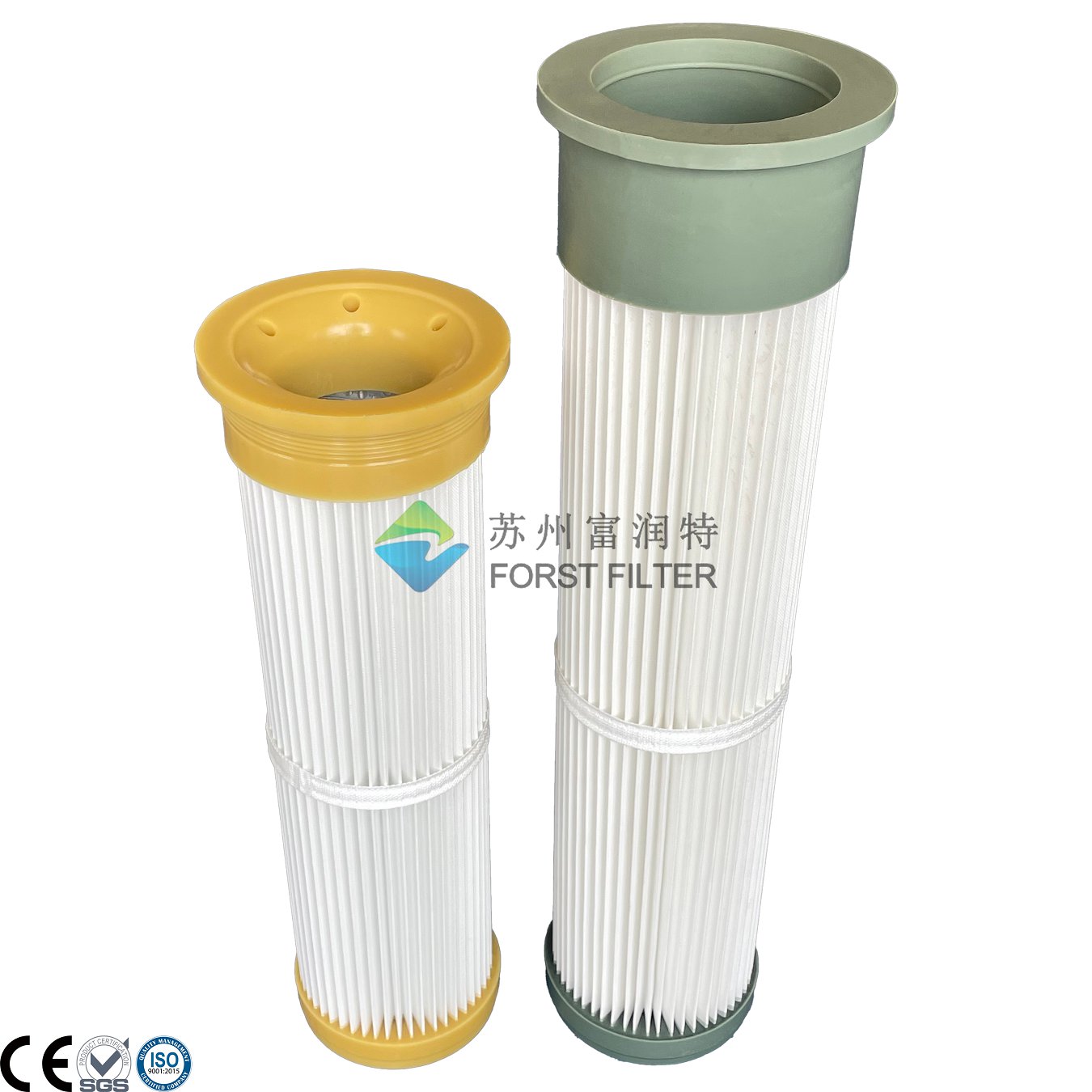

High-Efficiency PU End Cap Dust Collector Filter Cartridge
Polyurethane Seal | Long Service Life | Easy Installation
Product Overview
The PU End Cap Dust Collector Filter Cartridge is designed with durable polyurethane end caps and premium filter media, ensuring excellent sealing, vibration resistance, and long-term filtration performance. This filter is ideal for industrial dust collection systems that require high efficiency, easy installation, and reduced maintenance downtime.
Key Features
Features
Polyurethane (PU) end caps with high flexibility and sealing performance
Premium filter media for fine dust capture
Inner & outer metal support cage for structural strength
Advantages
Resistant to wear, aging, and chemical corrosion
Vibration-absorbing PU design protects the filter and dust collector
Compatible with various installation systems
Benefits
Stable filtration efficiency over long service life
Extended dust collector lifespan
Reduced maintenance time and costs
Applications
Perfect for dust collection systems in:
Metalworking
Painting & Coating
Food Processing
Pharmaceutical Manufacturing
Woodworking
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | FS-PU-001 / FS-PU-002 / Custom |
| End Cap Material | Polyurethane (PU) |
| Filter Media | Polyester / Cellulose / Blended |
| Filtration Efficiency | ≥99.0% @ 1μm |
| Outer Diameter | 76mm / 100mm / Customizable |
| Length | 150mm – 1200mm optional |
| Support Cage | Galvanized steel or stainless steel |
| Seal Material | Polyurethane integrated seal |
| Max Operating Temperature | ≤80°C (polyester), ≤70°C (cellulose) |
| Operating Pressure | ~ -10kPa to +30kPa (reference) |
| Service Life | Typically 6–12 months (depends on conditions) |
| Weight | Varies by size |
| Certifications | ISO9001, material reports, and third-party test reports |
Customization Options
We provide custom PU end cap filter cartridges tailored to your application needs:
Size and length
Filter media type
End cap color and hardness
Seal design
Share your operating environment details (dust type, temperature, humidity) to get the optimal solution.
